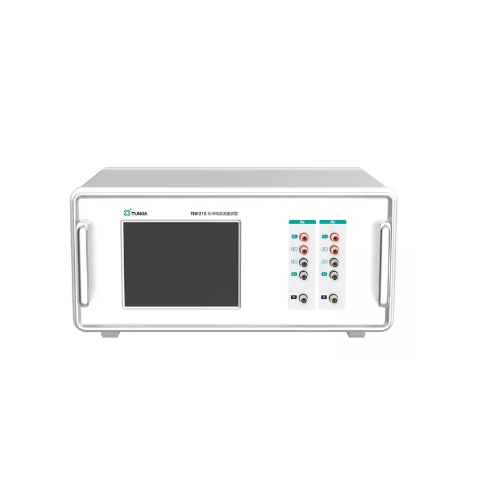

Tunkia TH0210 Standard Resistance Measuring Apparatus (1 mΩ ~ 100 kΩ)

Current output: 100 μA ~ 3.2 A.

Resistance measurement: 1 mΩ ~ 100 kΩ(customizable).

0.5 ppm ~ 3 ppm(External Primary Standard Resistor)

Typical value of test period: about 4.5 minutes.

RS232 and LAN interfaces.

LCD touch screen.

Statistical analysis.

Dedicated software(optional).

-General Specifications:

Power supply: AC ( 220±22 ) V,( 50 ±2 ) Hz;

Warm up time: Twice the time since last warmed up, to a maximum of 60 minutes.

Maximum power consumption: 100 VA

Temperature performance:

Operating temperature: 18°C ~ 28 °C；

Storage temperature: -20°C ~ 60°C；

Humidity performance:

Operating humidity: (20 % ~ 50%) R•H, non-condensing；

Storage humidity: (15 % ~ 80%) R•H, non-condensing；

Weight: About 22.5 kg

Communication interface:RS232、LAN

Dimensions: 485 mm(W)*355 mm(D)*220 mm(H) (Excluding handles and feets）
