Summary
TI1200 is a high-precision DC resistance source with wide range, it is applied for calibrating ohmmeter on-site, e.g, industrial production lines, etc.
Application
- Calibrate DC resistance meters
- Calibrate digital multimeters
- Calibrate DC bridges, microhmmeters.
Features

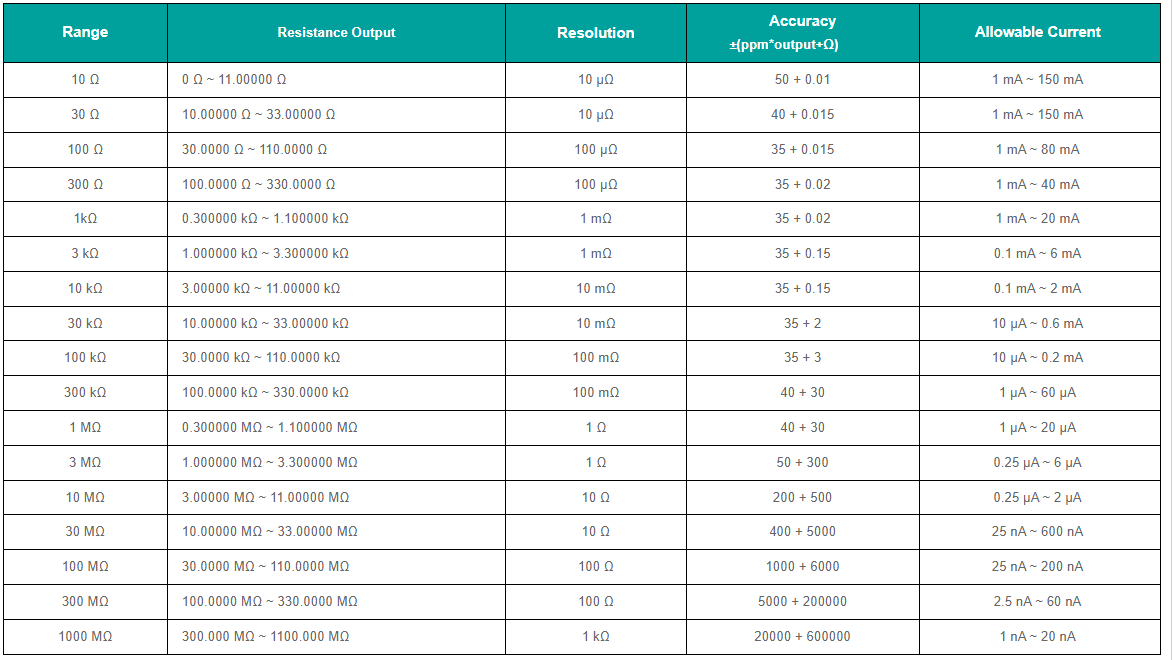

Resistance Output: 0 Ω ~ 1100 MΩ
Accuracy: 50 ppm
Shortcut output keys
Programmable calibration schemes
RS232, LAN and USB communication interfaces
General Specifications
Power Supply:AC (220±22) V, (50±2) Hz
Maximum Power Consumption:100 VA
Warm-up Time:Twice the time since last warmed up, to a maximum of 30 minutes.
Temperature Performance:0°C ~ 55°C, 30%R·H ~ 80%R·H, non-condensing
Humidity Performance:-30°C ~ 70°C, 10%R·H ~ 90%R·H, non-condensing
Communication Interface:USB×1、LAN×1、RS232×1
Dimensions:215 mm (width) x 252 mm (depth) x 88 mm (height), excluding feets.
Display:3.5-inch color LCD
Weight:About 5 kg
For detailed specifications, please refer to the Datasheet enclosed herewith
