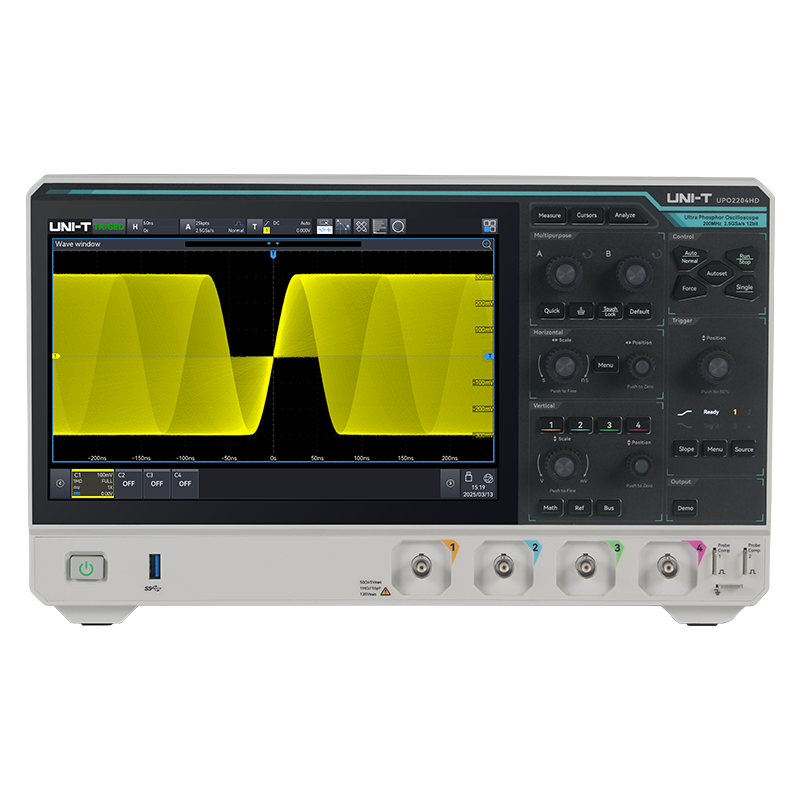

Bandwidth : 200 MHz
Channels : 2
Sample rate (analog) : 2.5 GSa/s (single channel: ), 1.25 GSa/s (dual channel), 625MSa/s (four channels)
Memory depth : 100Mpts/CH
Max. Waveform capture rate : ≥250,000 wfms/s; ≥1,000,000 wfms/s (sequence mode)
Vertical resolution : 12-bit (ERES is enabled with a maximum of 16-bit)
Time base scale: 2 ns/div to 1000 s/div
Input impedance : (1 MΩ±2%) || (18 pF±2 pF)
Vertical scale : 500 μV/div to 10 V/div (1 MΩ)
DC gain accuracy : <5 mV: ±2% full scale，≥ 5 mV: ±1.5% full scale
Waveform record : 120,000 frames
Serial protocol analysis: RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT
Auto measurements : 56 kinds of parameter, simultaneously display 27 kinds of parameter measurement
Measurement statistics : Mean, Maximum, Minimum, Std Dev, Count, Tendency chart, Histogram
Frequency counter: 7-digit hardware frequency counter
Digital voltmeter : 4digits,DC/AC RMS/DC+AC RMS
Advanced analysis function : Power Analysis (Optional), Limit Mask Testing
Standard interfaces : USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), HDMI, 10MHz reference clock IN/OUT
General Characterisitics:
Power : 100 V~240 VAC(fluctuate:±10%),50 Hz/60 Hz 100 V~120 VAC(fluctuate:±10%),400 Hz
Display : 10.1 - inch multi-touch capacitive screen, 1280*800(H*V)
Product net weight : 2.92 kg
Product size (W×H×D) : 361 mm×209 mm×106 mm
Standard quantity per carton : 1pcs
Standard Accessories:
National standard cable x 1:
USB3.0 cable x 1:
BNC-BNC direct-through line x 1:
BNC-red and black alligator connecting wire x 1:
Passive probe (200 MHz/100 MHz) 4/2 pcs:
