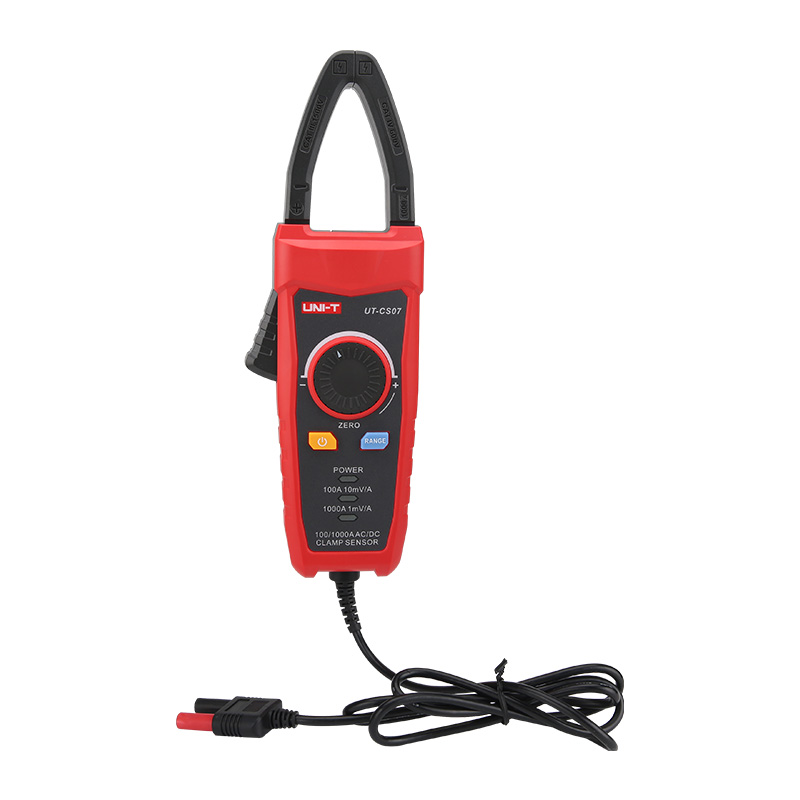

UNI-T UT-CS07 AC/DC Clamp sensor (AC/DC 1000A)

ACA Current

100.0A 10mV/A 士(1.5%+0.5A)

1000A l mV/A 士(2.0%+0.5A)

DCA Current

100.0A 10mV/A 士(1.5 %+0.5 A)，45 Hz~200 Hz;   士(2.0 %+0.5 A)，200 Hz~ 400 Hz

1000A l mV/A 士(2.0%+0.5 A)，45 Hz~200 Hz;   士(2.5 %+0.5 A)，200 Hz~400 HZ

Features:

Jaw size: 35mm conductor or  65 * 8 mm busbar

Output ratio: 10mV/A & 1mV/A

Wire length: 1.1m

True RMS: depends on the Multi-meter

Response time: depends on the Multi-meter

Frequency(ACA): 50 Hz~400 Hz

Waveform display: Adaptable oscilloscope

Accuracy: depends on the Multi-meter

Power supply: AA * 2 = 3V; working current: <50mA

Low battery indication: yes

Drop test: 1m

Polution degree: 2

working environment: 0’C~30°C(<75%RH),30°C~40°C(<50%RH)

Storage environment: -10℃~50°C(<80%RH)；

Overvoltage category: CATⅢ1500V/CATⅣ600V

Certificates: CE

Characteristic:

Dimension: 276mm * 86mm * 50mm

Tail cable length: Around 1.1m
