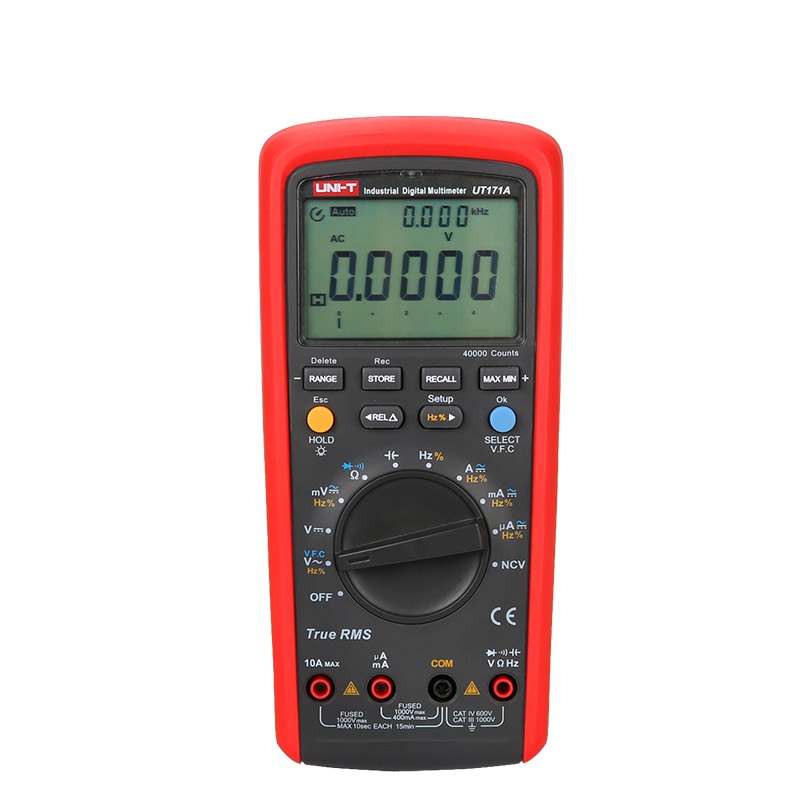

UNI-T UT171A Digital Multimeter (±0.25%,1000V,10A,True RMS)

DC voltage: 1000V ±(0.25%+5)

AC voltage: 1000V ±(0.4%+40)

DC current (A): 10A ±(0.15%+2)

AC current (A): 10A ±(0.75%+5)

Resistance (Ω): 40MΩ ±(0.05%+2)

Capacitance: 40mF ±(2.5%+40)

Frequency: 10Hz ~ 10MHz ±(0.01%+5)

Duty cycle: 0.1%~99.9%

Display count: 40000

Auto/Manual range: Yes

True RMS: Yes

Bandwidth (Hz): 100kHz

Diode: Around 3V

Continuity buzzer: Yes

Duty cycle: 0.1%~99.9%

NCV/Data hold/MAX/MIN: Yes

Relative mode: Yes

Data storage: 1000

Display type: LCD

Analog bar graph: 31

LCD backlight: Yes

Mis-plug alarm: Yes

Low battery indication: Yes

Auto power off: Yes

Input protection: Yes

Input impedance for DCV: Around 1GΩ

1m drop test: Yes

Safety rating: No

Power: UT171A: 1.5V battery (R03) x 6

Display: 70.6mm x 49.5mm

Product color: Red and grey

Product net weight: 384g

Product size: 206mm x 95mm x 55mm

Standard accessories: Batteries, test leads, point contact temperature probe,USB interface cable, PC software CD

Optional accessory: Bluetooth adaptor (UT-D07)
