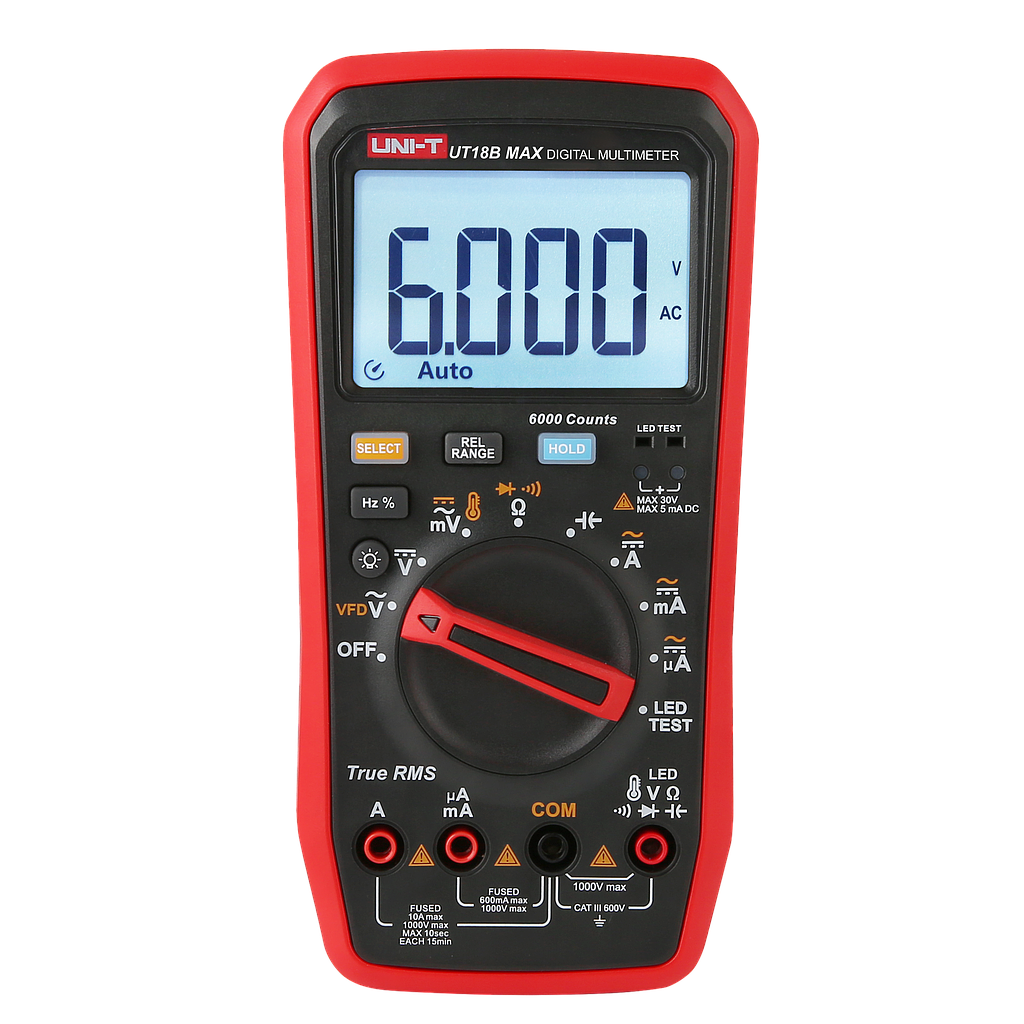

UNI-T UT18B MAX True RMS Digital Multimeter (1000VAC/DC, 10AAC/DC, True RMS)

Voltage (DC): 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.4%+3)

Voltage (AC): 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+5)

VFD (Voltage): 600.0V ±(8%)

Current (AC):600.0µA/6000µA/60.00mA/600.0mA/6.000A/10.00A ±(1.2%+3)

Current (DC):600.0µA/6000µA/60.00mA/600.0mA/6.000A/10.00A ±(1.2%+3)

Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ ±(0.5%+2)

Capacitance: 6.000nF/60.00nF~600.0µF/6000µF ±(2.0%+5)

Frequency (Hz):1 0Hz~10MHz ±(0.1%+3)

Duty cycle: 1%~99.9% ±(1.0%+4)

Temperature (°C/°F):- 55°C~500°C/-67°F~932°F ±2°C/±4°F

Display count:6000

Continuity/Diode Yes

Data hold: Yes

MAX/MIN: Yes

Relative mode: Yes

Backlight (adjustable): Yes

Auto range/Manual range: Yes

Auto power off: Yes

Low battery indication: Yes

Audible & Visual alarm: Yes

LED test: Yes

Mis-plug alarm: Yes

Any-key wake up: Yes

Overvoltage category: CAT III 600V

Power supply: 2 x 1.5V AA

Product color: 426U+1797C

Product weight: 455g

Product dimension: 182 x 91 x 45mm

Accessories: 1pcs User manual, 2 pair Test lead (normal gold plated probe & Fine-tipped probe), 1pcs K-type thermocouple (UT17B/UT18B MAX only), 2pcs battery, Magnetic hanger (optional)

SPQ: 10 pcs

Package dimension: 480 x 370 x 195mm

Standard package gross weight: Around 9kg
