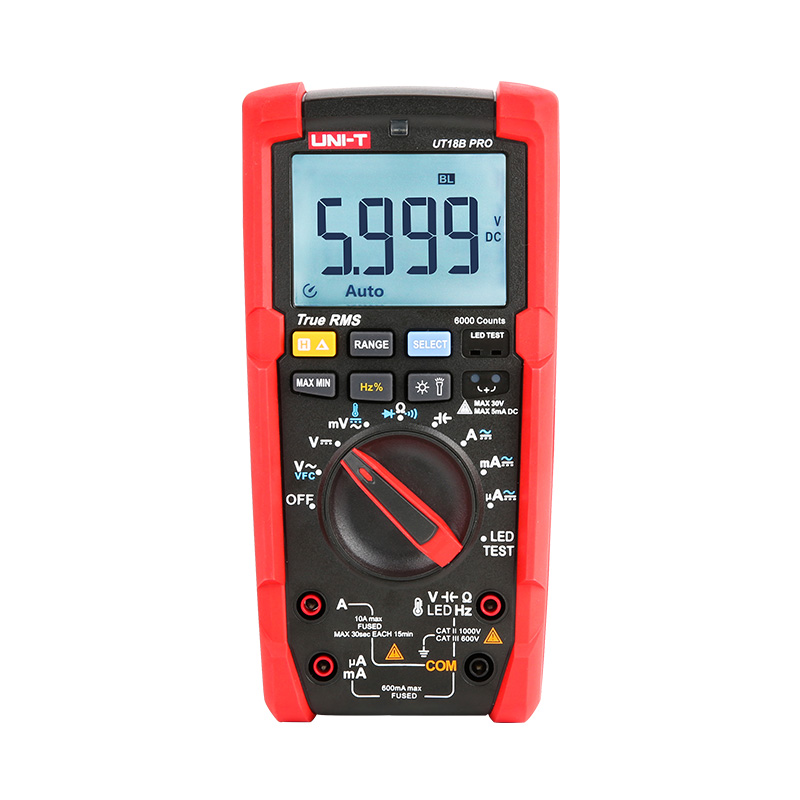

UNI-T UT18B PRO Digital Multimeter (1000VAC/DC, 10AAC/DC)

Certificate: CE / RoHS / cETLus

Overvoltage category: CAT III 1000V; CAT IV 600V

DC voltage (V): Range: 1000V; Accuracy: ±(0.5%+3)

AC voltage (V): Range: 1000V; Accuracy: ±(1%+3)

AC current (A): Range: 10A; Accuracy: ±(1%+3)

DC current (A): Range: 10A; Accuracy: ±(0.8%+3)

Resistance (Ω): Range: 60MΩ; Accuracy: ±(0.5%+2)

Capacitance (F): Range: 6000μF; Accuracy: ±(2%+5)

Frequency (Hz): Range: 1MHz; Accuracy: ±(0.1%+3)

Duty cycle: Range: 1%~99%; Accuracy: ±(1%+4)

Temperature (°C/℉): Range: -55℃~500℃/-67℉~932℉; Accuracy: ±(2%+1)

Power: 1.5V battery (LR6) x 2

Product net weight: 484g

Product size: 195mm x 95mm x 58mm

Standard accessories: English manual, test lead, temperature adapter socket(UT18B PRO), batteries

Features:

Display count: 6000

True RMS: √

Auto range/Manual range: √

LED test (12V): √

Continuity/Diode test: √

Relative mode: √

Data hold: √

Max/Min: √

Auto backlight: √

Auto power off: Approximately 15 minutes: √

Low battery indication: ＜2.5V approximately: √

Drop test: 1m: √

General Characteristics:

Power: 1.5V battery (LR6) x 2

Product net weight: 484g

Product size: 195mm x 95mm x 58mm

Standard accessories: English manual, test lead, temperature probe (UT17B PRO); temperature adapter socket(UT18B PRO), batteries
