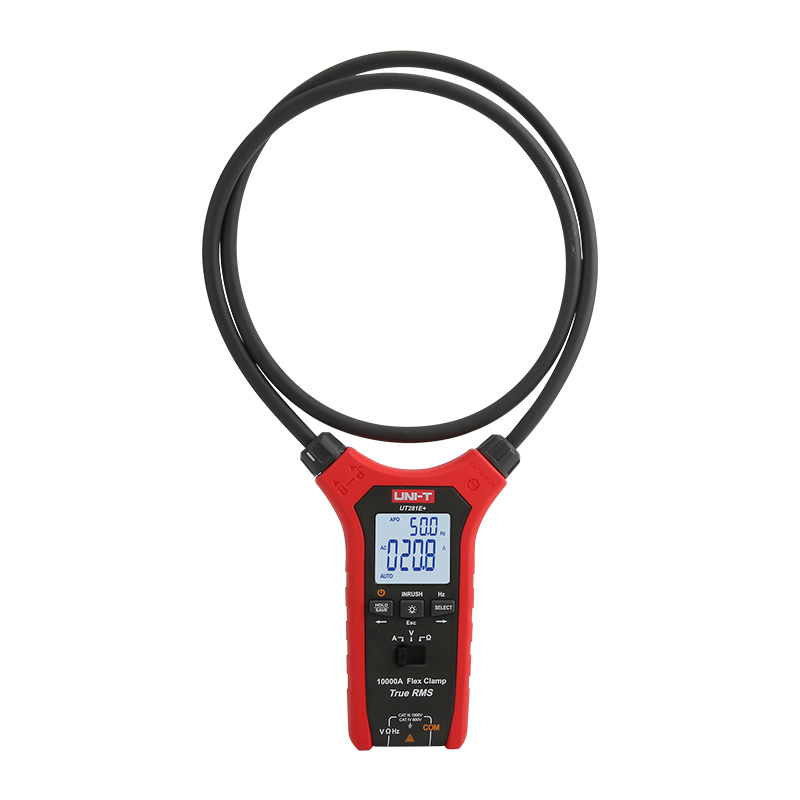

UNI-T UT281E+ Flex clamp (AC 10 000A; True RMS)

Specifications:

Current(ACA): 60.0A/600.0A/6000A/10000A

Frequency response(ACA): 45~400Hz

Resolution & Accuracy: 0.01A; ±(2%+5)

Inrush current: 6000A

Voltage(ACV): 1000V

Accuracy (ACV):  ±(1.2%+3)

Voltage(DCV): 1000V

Accuracy (DCV):  ±(1.2%+3)

Resistance: 60.00MΩ: ±(1.0%+5)

Frequency: 10.00Hz~30.00kHz:  ±(0.5%+3)

Active power: /

 Apparent power: /

 Reactive power: /

 Power factor: /

 Electric energy: /

 Phase sequence: /

Features:

True RMS: √

Display count: 6000

Sampling rate: 3times/s

Data storage: /

 Data hold: √

 Backlight: √

Power supply: 1.5V AAA×3

Data communication: /

Meter’s Dimension: 145 x 58 x 33mm

Length flexible coil: 43.30″(1100mm)

Coil inner dia.:  radius: 6.26″ (15.92cm)

Coil dia.: Φ8mm

Dimension(LCD): 35mm*32mm

Warning indication: High voltage & OL

2m drop test: /

Overvoltage rating: CAT III 1000V & CATⅣ 600V

Certificates: CE/ETL/ROHS

Datasheet
