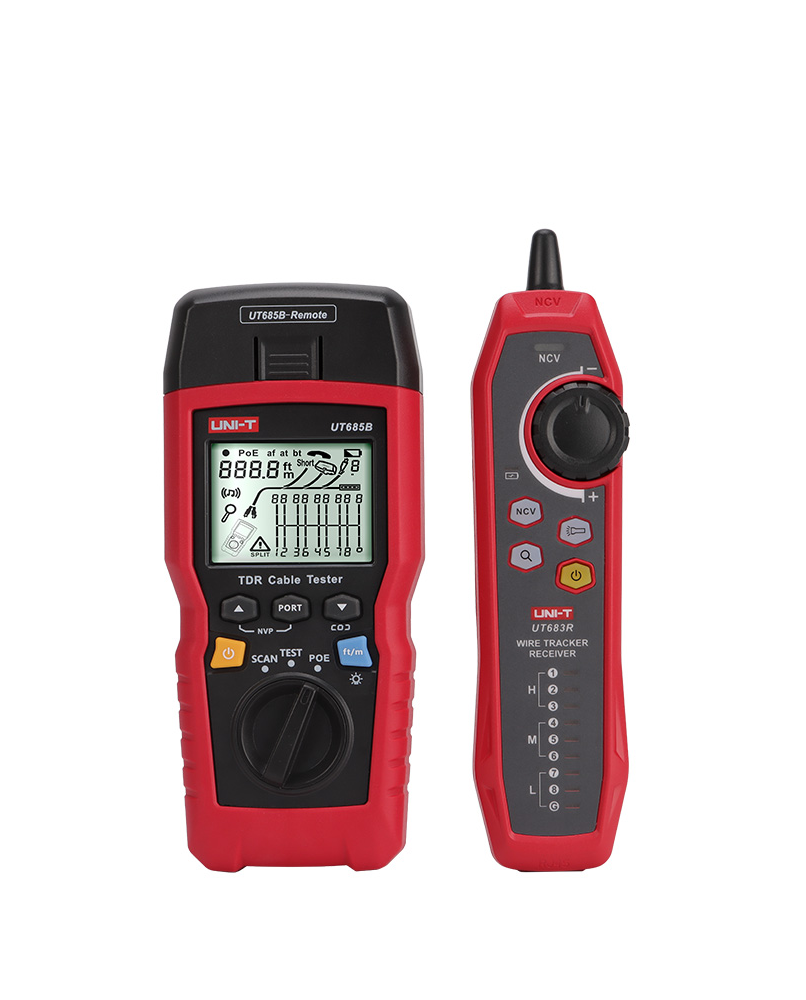

UNI-T UT685B TDR cable tester

- Tested cable type: Twisted pair cable

1. UTP (unshielded cable),

2. FTP (aluminum foil shielded cable);

3. SSTP (double shielded network cable);

Coaxial cable: 50Ω, 75Ω, 93Ω

- Cable length test:

Range: 500 m;

Resolution: 0.33 m;

Accuracy: ± 4% or 0.6 m

- POE detection

POE power detection

POE standard: 802.3AF

POE standard: 802.3AT

- Ethernet port test

- Cable location

- Port blinks

- Input protection: 70VDC

- Screen: 2.8″ LCD

- Auto power off: Around 10 minutes

- Standard accessories:

RJ45 adapting cable: 1 pc;

RJ11 adapting cable: 1 pc;

RJ11 adapting cable (adapted to alligator clip): 1 pc;

Plug, F-connector to F-connector: 1 pc;

User manual: 1 pc

- Power: AAA alkaline batteries x4

- Product Dimension: 180mm×84mm×37.8mm
