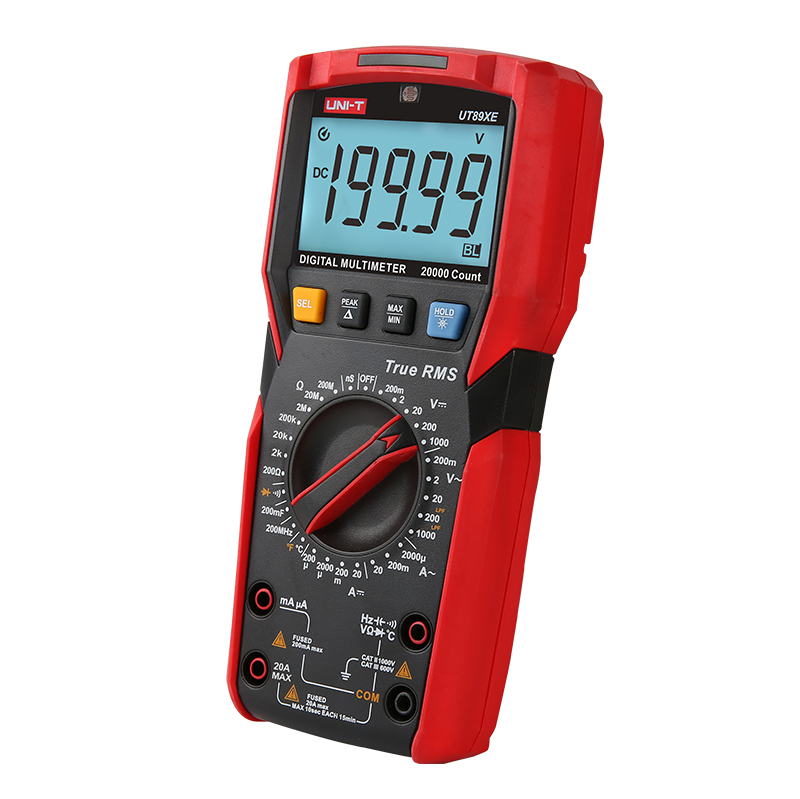

UNI-T UT89XE Digital Multimeter (1000V; 20A; True RMS; 0.05%)

Safety ratings: CAT II 1000V, CAT III 600V

DC voltage (V): 200mV/2V/20V/200V/1000V; ±(0.05%+5)

AC voltage (V): 200mV/2V/20V/200V/1000V; ±(0.8%+25)

DC current (A): 2000μA/200mA/20A; ±(0.5%+4)

AC current (A): 2000uA/200mA/20A; ±(1.5%+15)

Resistance (Ω): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ; ±(0.4%+5)

Capacitance (F): 200mF; ±(4%+50)

Conductance (ns): 200nS; ±(1.2%+50)

Frequency (Hz): 60MHz; ±(0.1%+3)

Temperature (℃): -40℃~1000℃; ±(1%+10)

Temperature (℉): -40℉~1832℉; ±(1.5%+10)

Audible/visual alarm: V/A/Cap/Diode

MAX/MIN: √

Peak Hold: √

LPF measurement: √

General Characteristics

Power: 1.5V battery (R03) x4

Display: 61mm x 36mm

Product net weight: 345g

Product size: 189mm x 89mm x 53mm

Standard accessories: Batteries, test lead, k-type temperature probe, English manual
