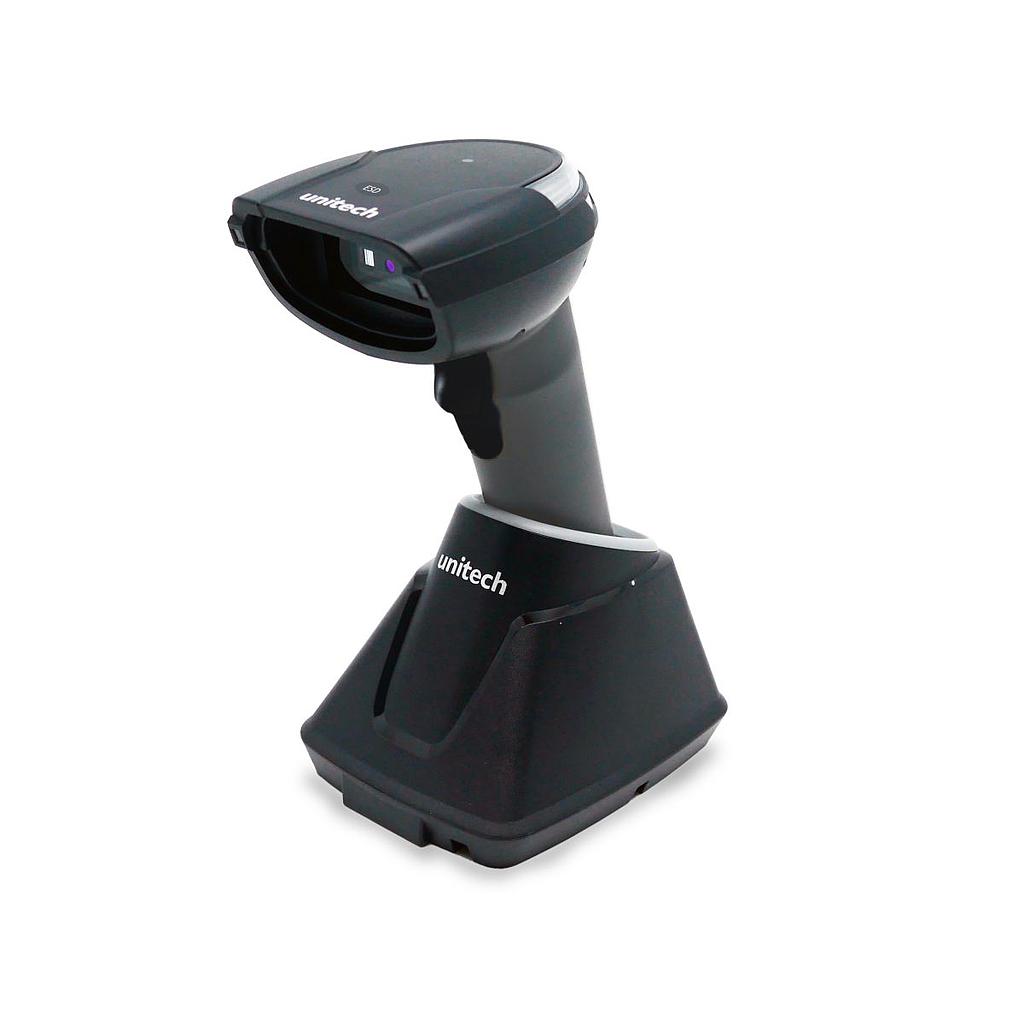

Unitech MS851B ESD Bluetooth ESD-Safe Laser Scanner (650 nm; 4mil)

Sensor: 1D Laser

Aiming Element: Visible laser diode 650 nm

Illumination: Hyper Red 660nm

Pitch Angle: ±40°

Roll Angle: ± 35° from vertical

Optical Resolution: 4 mil (0.1mm)

Depth of Field:

Symbology | Density | Near | Far

5 mil Code 128 | 3.55 cm | 17.78 cm

5 mil Code 39 | 3.05 cm | 26.67 cm

7.5 mil Code 39 | 3.04 cm | 41.91 cm

10 mil Code 128 | 3.05 cm | 40.46cm

13 mil UPC | 4.57 cm | 63.50 cm

15 mil Code 128 | 5.08 cm | 66.04 cm

20 mil Code 39 | 3.56 cm | 116.84 cm

55 mil Code 39 | 8.64 cm | 177.80 cm

100 mil Code 39 | 60.96 cm | 457.20 cm

Communication: Serial port and HID port

Supported Host Interface: USB

Dimensions: 87.8 L x 71.6 W x 177.7 H (mm)

Weight: 213g without cradle

Trigger Switch Life: 10 million times

Barcodes: 1D

Indicators: LED & Beeper & Vibrator

ESD Protection: Functions after 8K Contact and 15K Air

Mechanical Shock: 2.1M drop to concrete (scanner only)

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40°C to +70°C (-40°F to +158°F)

Standard: IP42

Accessories (Optional):

■ USB Cable (PN# 1550-905904G)

■ 1-slot Charging Cradle (PN#5000-900074G)

■ Battery Pack (PN# 1400-900055G)

Certifications: CE, FCC, BSMI, VCCI, NCC, TELEC, BQB

Memory: 7MB for batch mode/ 20KB for auto mode

Key: Trigger Key

Wireless Coverage: 100m (line of sight)

Battery Type: Rechargeable and replaceable battery pack.

Battery Capacity: 2850mAh

Battery Charging Time: <6.5 hours

Operating Time: >30 hours Up to 50,000 scans in 1 scan/5 seconds

Scan Rate: 104 (± 12) scans/second (bi-directional)

Bluetooth: Bluetooth LE V4.2 Bluetooth 2.1+EDR, Dual mode Class 2
