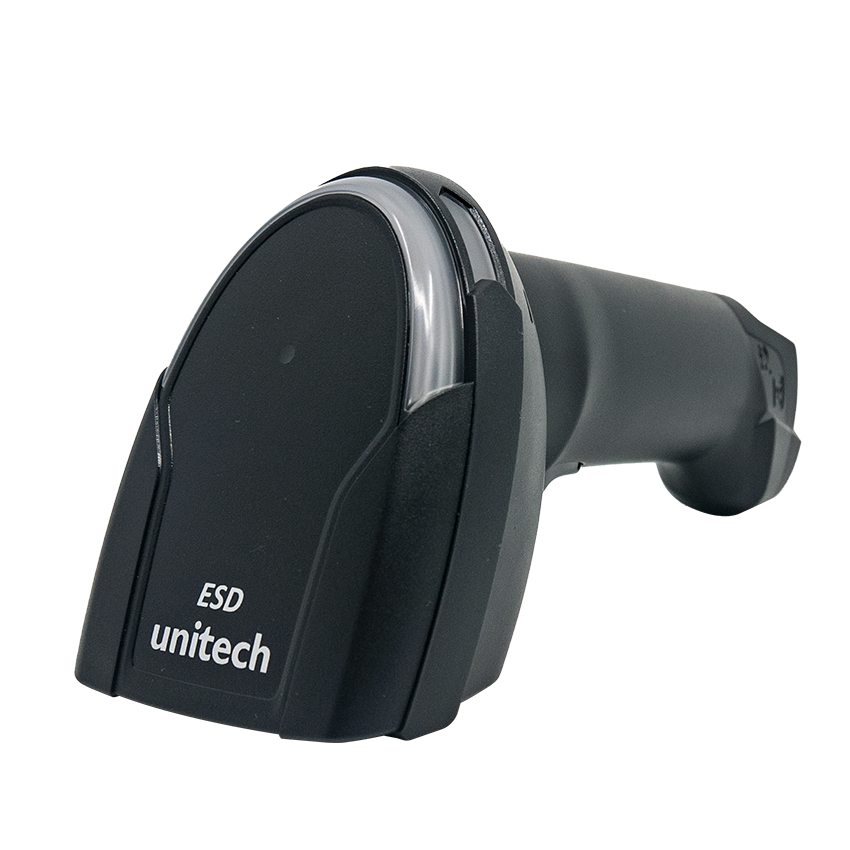

Unitech MS852 DPM ESD 2D Imager DPM Scanner (1D : ≥3 mil ; 2D : ≥5 mil)

Sensor: 1280 X 800 Resolution

Aiming Element: 650nm Laser Diode

Illumination: Laser Diode

Pitch Angle: ±55°

Roll Angle: ±360°

Optical Resolution: 1D: ≥3 mil; 2D: ≥5 mil

Depth of Field:

Code39 (5 mil): 50 mm140 mm

Code39 (20 mil): 160 mm320 mm

EAN-13 (13 mil): 50 mm200 mm

Data Matrix (10 mil): 40 mm140 mm

QR Code (20 mil): 40 mm~200 mm

Communication: Wired

Supported Host Interface: USB (HID; CDC)

Dimensions: 87.8 L x 71.6 W x 177.7 H (mm)

Weight: 165g without cable

Trigger Switch Life: 10 million times

Barcodes: 1D, 2D, DPM

Operating Voltage: 4 VDC to 5.5 VDC

Current Consumption: Operating: 252mA Standby: 77mA

Indicators: Beeper, LED light

ESD Protection: Functions after 8K Contact and 15K Air

Mechanical Shock: 2.1M drop to concrete (scanner only)

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40°C to +70°C (-40°F to +158°F)

Standard: IP42

Accessories (Optional):

■ Standard hands-free stand (PN#5200-900009G, Optional)

■ USB Cable (PN#1550-905920G)

■ Protective Cover (PN#386793G)

Certifications: CE, FCC, BSMI, VCCI

Scan Rate: 70 frames/second
