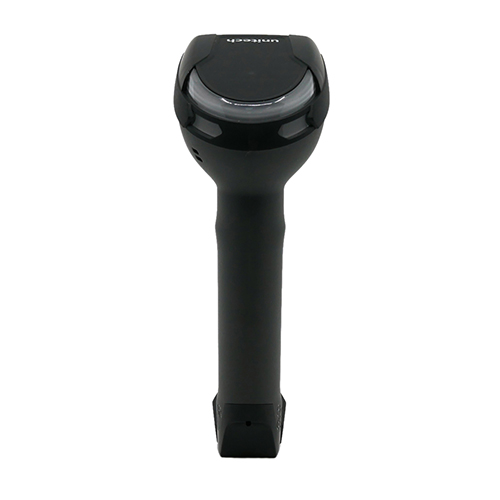

Unitech MS852 2D Imager Scanner (1280 x 960 pixel; 5.0 mil/ 6.6 mil)

Sensor: CMOS sensor with 1280 x 960 pixels

Aiming Element: 610nm

Illumination: Blue LED

Pitch Angle: ±60°

Roll Angle: 0 - 360°

Optical Resolution: 5.0 mil (Code 39), 6.6 mil (PDF417)

Depth of Field (DOF PCS=80%)

Symbology / X-DIM Typical Range* Near │ Far

5 mil Code 39 │ 2.4 in / 6.1 cm │ 9.5 in / 24.1 cm

5 mil Code 128 │ 2.8 in / 7.1 cm │ 9.0 in / 22.9 cm

6.67 mil PDF417 │ 2.4 in / 6.1 cm │ 8.0 in / 20.3 cm

10 mil Data Matrix │ 2.9 in / 7.4 cm │ 8.5 in / 21.6 cm

100% UPC │ 1.8 in / 4.6 cm │ 19.5 in / 49.5 cm

15 mil QR │ 1.2 in / 3.0 cm │ 11.5 in / 29.2 cm

20 mil QR Code │ 1.5 in / 3.8 cm │ 11.5 in / 29.2 cm

Communication: Wired

Supported Host Interface: USB / RS232

Dimensions: 87.8 L x 71.6 W x 177.7 H (mm)

Weight: 147g without cable

Trigger Switch Lifetime: 10 million times

Barcode: 1D, 2D

Operating Voltage: 4 VDC to 5.5 VDC

Current Consumption: Operating: 235mA / Standby: 60mA

Indicators: Beeper, LED

ESD Protection: Functional after 8K Contact and 15K Air

Mechanical Shock: 2.1M on concrete (scanner only)

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40°C to +70°C (-40°F to +158°F)

Protection Standard: IP42

Accessories (Optional):

■ Standard hands-free stand (Optional)

■ Auto-sensing hands-free stand (Optional)

Certifications: CE, FCC, BSMI, VCCI
