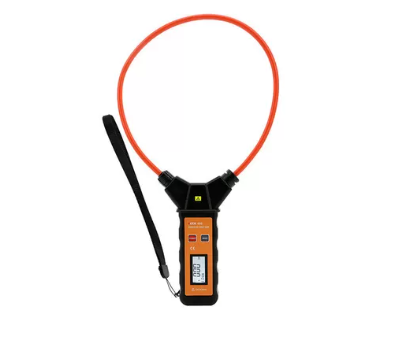

VICTOR 690 Electric Power Tester (AC 0.00A~9999A)

Power Source:Zinc-manganese dry battery 6F22 9V

Test Mode:Flexible CT: the output signal is the differential of the current to the time. By integrating the output voltage signal, the input current can be truly restored.

Coil Diameter:200mm diameter

Range:AC 0.00A~9999A

Resolution:AC 10mA

Accuracy:±2%+3dgt(The wire is in the center of the flexible coil,23℃±2℃

Coil thickness:7.5mm (Very suitable for narrow environments and places with dense wiring)

Measured Current Frequency:50Hz/60Hz (automatic identification)

Data Storage:99units,all used when display FULL

Peak Value Hold:Push HOLD without release, the meter will show the peak value during the pushing period, display

Data Hold:DH indicating the reading is hold

Line Voltage:circuit test below AC1600V
