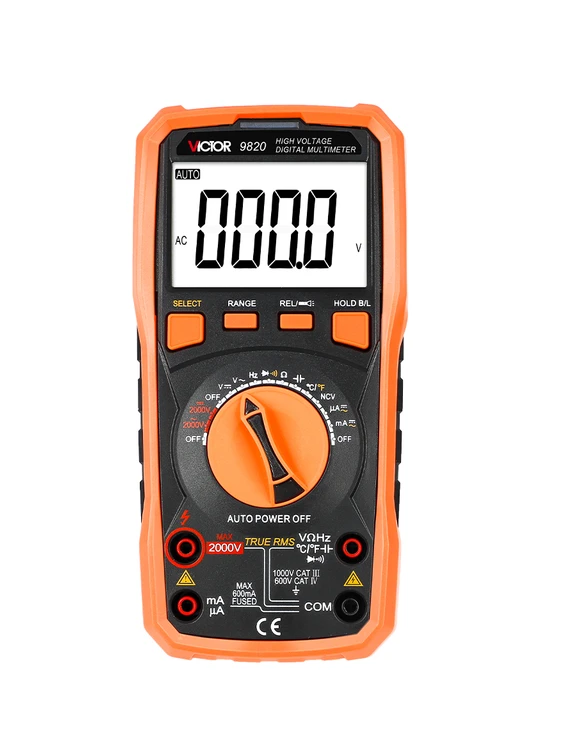

VICTOR 9820 Digital Multimeter (2000VDC/AC, 600mADC/AC, TRMS)

DC voltage

600mV/6V/60V/600V/1000V /± (0.5%+4)

2000V /± (1.0%+6)

AC voltage

6V/60V/600V/750V /± (0.8%+10)

2000V /± (1.2%+10)

DC current: 600uA/6000uA/60mA/600mA /± (1.0%+10)

AC current: 600uA/6000uA/60mA/600mA /± (1.5%+10)

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ /± (0.8%+5)

Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/20mF /± (3.5%+20)

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz /± (0.5%+10)

Temperature: (-20~1000) ℃ / (-4-1832) ℉ /± (1.5%+15)

Power supply: 4x 1.5V AAA batteries

Product size: 186mmX92mmX52 mm

Product weight: 395g

Standard accessories: Manual, batteries, test leads
