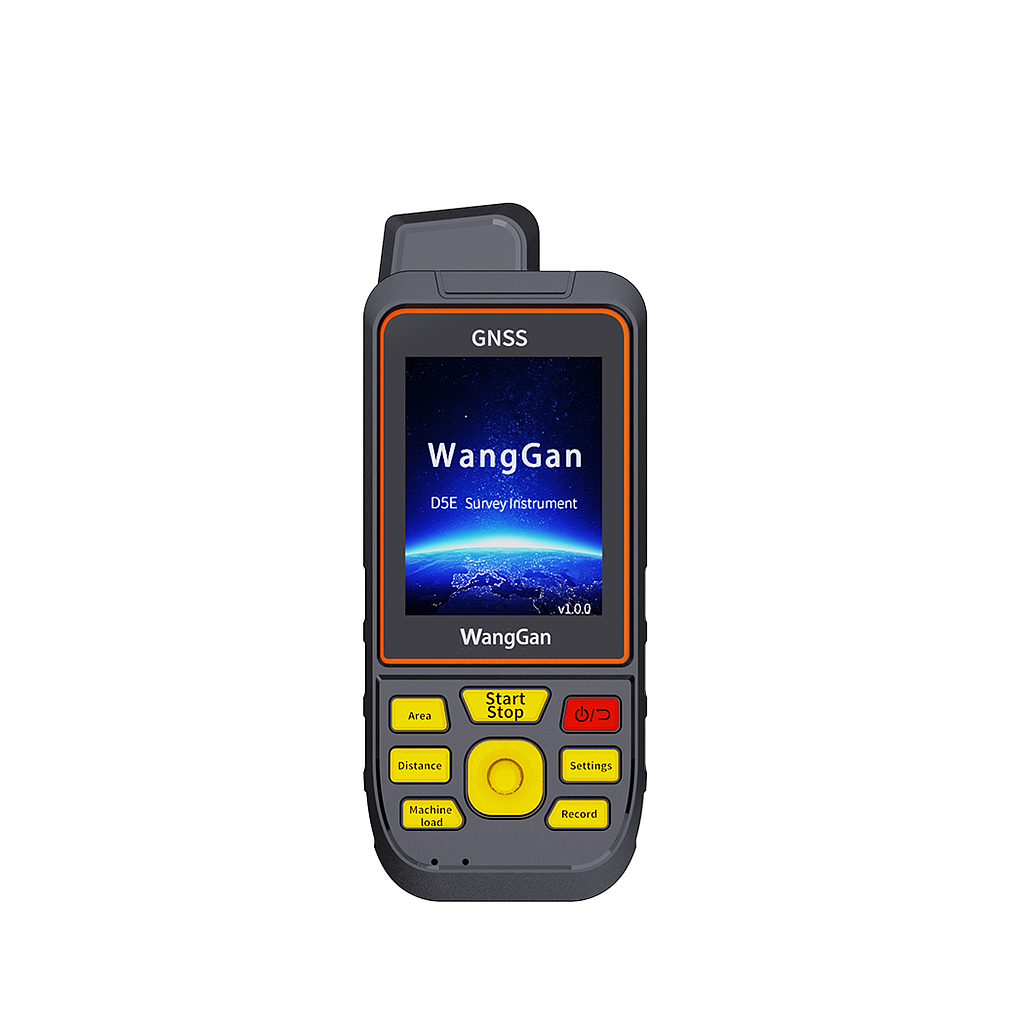

WangGan D5E Handheld GPS/GNSS Survey Equipment Land Meter

Positioning accuracy: +2.0 m (when HDOP lower than 1.0)

Area accuracy: ±0.003 acre(0.16-0.5 acre)±1% (more than 0.5 acre)(when HDOP below 1.0)

Distance accuracy: ±1 m (when HDOP lower than 1.0, 100 m range)

Satellite system: Six-star positioning system

Area record: 200

Distance record: 200

Waypoint record: 2000

Waterproof and dustproof: IP67

Device size/weight: 161*65*26 mm / 199 g

Function: Normal area measurement, L/W area measurement, Fixed-width area measurement, Fixed point measurement, Circle machine load, Round-trip machine load, Intelligent slope,Intelligent mountain measurement, Normal distance, Fixed-point distance, Slope distance, Fixed point slope distance,Altitude measurement, Waypoint, Barometer, Flashlight, Data export, Data import, Real-time update graph, View graphics in record

Standard configuration: Equipment*1, Lithium battery*1, Power cable*1, Charger*1, Sling*1, Soft bag*1, specification*1, Certificate*1, Packing box*1
