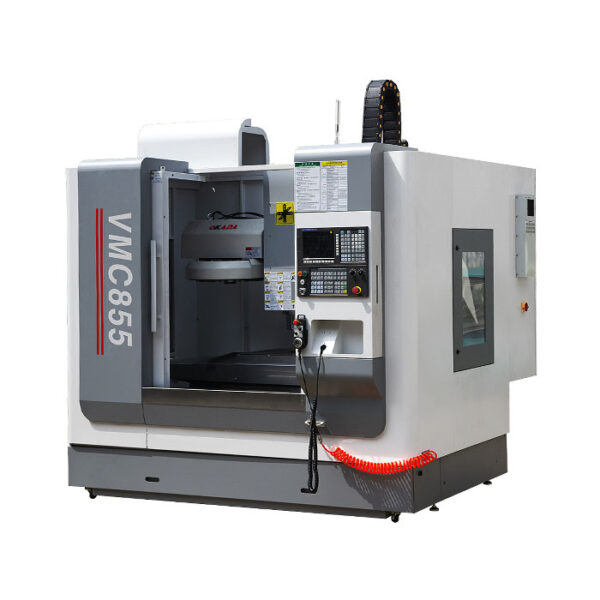

Worktable size (LxW): 1000x550mm
T-slot (NxWxD): 5x18x100mm
X/Y/Z axis travel: 800/550/550mm
Distance from spindle center to column: 595mm
Distance from spindle end to worktable: 120-670mm
Spindle taper: BT40
Spindle power: 7.5kw
Max.spindle speed: 8000rpm
Max.feed speed: 10m/min
Rapid feed speed (X/Y/Z): 36/36/32m/min
X/Y/Z axis ball screw: 4010/C3
Positioning accuracy (X/Y/Z): ±0.010mm
Re-positioning accuracy (X/Y/Z): ±0.003mm
Water tank volume: 200L
Cooling pump power: 120w
Cooling pump flow: 50L/min
LxWxH: 2750×2300×2300mm
Machine weight: 5300kg
