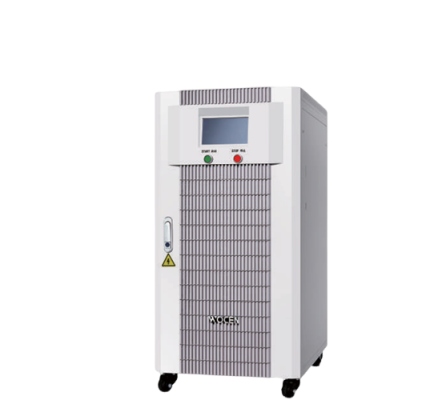

Three-phase output product
Voltage: Phase voltage 0-300V; Line voltage 0-520V
Current (Low/High): 362A/181A
Power: 120kVA
Size (W*H*D) mm: 800×1845×1450
Input frequency: 50Hz/60Hz±5%
Output voltage mode: Three-phase standard mode, parallel single-phase mode, American standard two-phase mode, three-phase independent mode, three-phase unbalanced mode
Output voltage range: Phase voltage: Low grade :0- 150V, High grade :0- 300V
Output voltage error: +(0.2% read value +0.2% full scale value)
Output frequency: 40- 70Hz adjustable,100HZ,120HZ,200HZ,240HZ fixed point
Frequency stability: <±0.1%
Transient recovery time: ≤20mS
Source effect/load effect: ≤1%
Waveform distortion: <1%(high/low voltage 220V/110V±15%, resistive load)
Overload capacity: 100%-110%, 5min; 110%-150%, 1min; 150%- 200%, 5s; 200%-300%, 2s; =300% Switch off the output immediately
Protection function: Over voltage, over current, overload, high temperature, short circuit automatic protection and alarm display
Display
Display mode: 7 inch touch screen display
Output voltage: Resolution 0.1V; Display accuracy: ±(0.2% read value +0.2% full scale value)
Output current: Resolution 0.01A; Display accuracy: ±(0.3% read value +0.3% full scale value)
Output frequency: Resolution 0.1Hz; Display accuracy :±0.1%
Output power: Resolution 0.01kW; Display accuracy: ±(0.45% reading value +0.45% full scale value)
Features
Shortcut Settings: 10 groups of voltage/frequency shortcut groups and can be customized
Programming function: Step mode, gradient mode, ladder mode
Soft start function: The initial voltage, operating voltage and boost time can be set. The boost time can be set to 1- 99s
Communication function: Standard RS232; RS485 and network port communication are optional
Resistance compensation: 0.000- 0.500 euros
Security
Insulation impedance: ≥DC500V, 10mΩ
Voltage insulation: DC2100V, 10mA，60S
Cooling mode: Forced air cooling
Environment
Operating temperature: 0~40℃
Relative humidity: 0~90%(non-condensing state)
Altitude: <1500m
