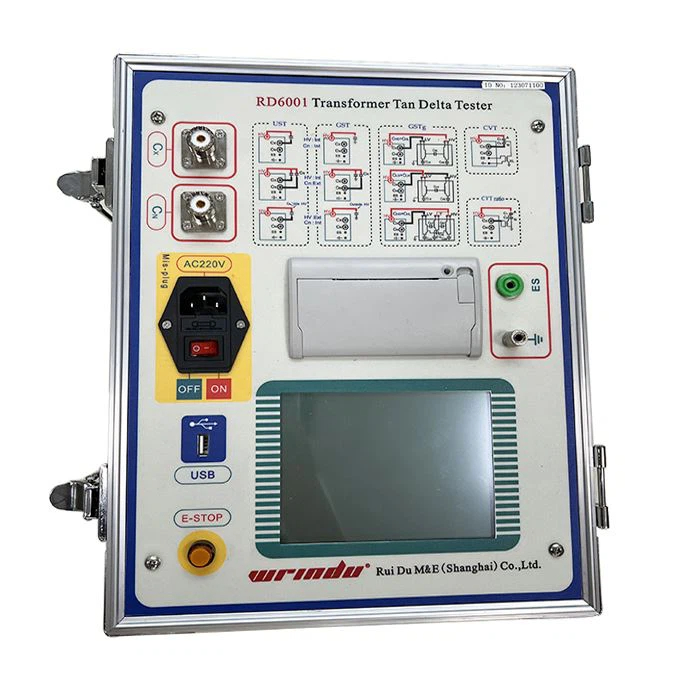

Wrindu RD6001 Tan Delta Test Set (Range: 0.5kV～10kV)

Anti-interference principle: Frequency conversion method

High voltage output: Range: 0.5kV～10kV , Accuracy: 5% , Maximum current: 200mA , Capacity: 1500VA

CVT test auto-exciting output: AC 0～50V/15A

Dielectric loss and capacitance test:

- tgδ: Range: unlimited , Accuracy: ±(reading*1.0%+0.040%) , Resolution: 0.001%

- Cx: Range: 15pF＜Cx＜300nF , Accuracy: ±(reading*1.0%+1.00pF) , Resolution: 0.001pF; Cx＜40nF @ 10kV , Cx＜150nF @ 5kV , Cx＜300nF @ 1kV , Cx＜300nF @ CVT tes

CVT ratio test: Range: 10～10000 , Accuracy: 3% , Resolution: 0.01

Test frequency: 50Hz , 60Hz , 45Hz/55Hz , 55Hz/65Hz , 47.5Hz/52.5Hz

Data storage: 200 groups, support U disk data storage

Service condition: Temperature: -15℃～40℃ , Humidity:＜80% RH

Power supply: AC 220V±10% , 50Hz
