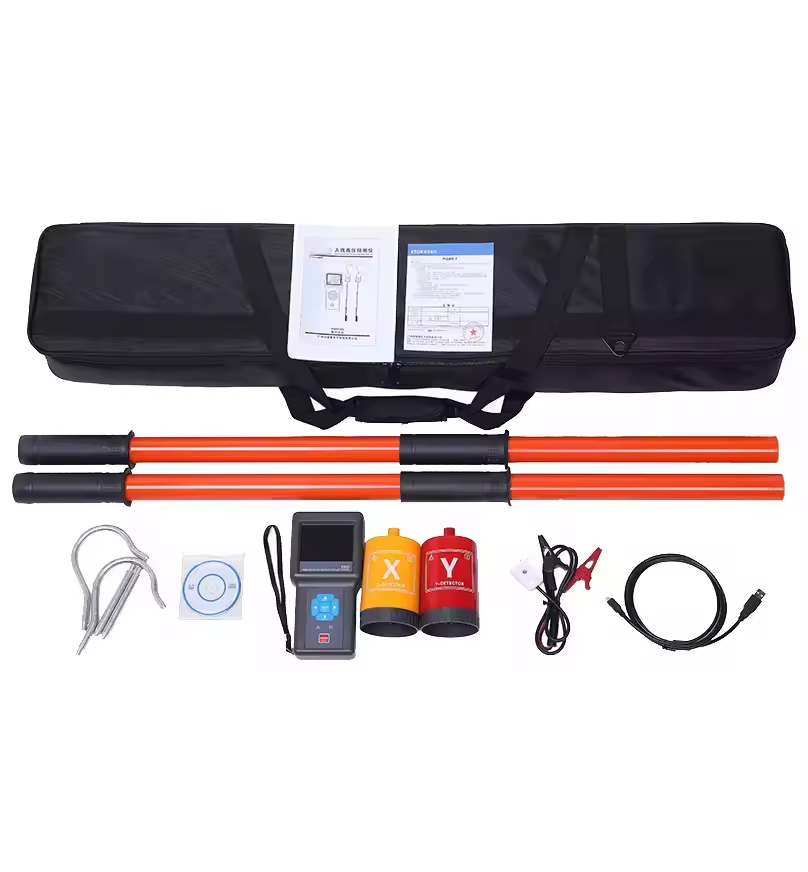

Wrindu TAG8000 Wireless High Voltage Phase Detector (Phase Detection Voltage: AC 10V ～ 500kV)

Power Supply:

Host: 3.7V 2600mAh,rechargeable lithium battery; Detector: 3.7V 600mAh , rechargeable lithium battery

Phase Detection Method:

1. Contact mode phase detecting: circuit line below 35kV

2. Non-Contact mode phase detecting

Phase Detection Voltage: AC 10V ～ 500kV

Phase detection distance: 260m

Voice Prompt: “X signal is normal, Y signal is normal, same phase, out phase”

Phase Qualitative: Same phase: －20°~ 20°; Out of phase: 100°~140° and 220°~ 260°

Phase Range: 0°~ 360°; Accuracy：≤±10°; Resolution : 1°

Frequency Range: 45.0Hz ～ 65.0Hz, Accuracy：≤±2Hz; Resolution：0.1Hz

Electricity Test Indication: “du--du--du” buzzing sound

Voltage Display: Display voltage class

Transmitting Frequency: 433MHz

Display rate: 2 times/second

Data Storage: 200 groups

Automatic Shutdown: 15 minutes after boot up

Rated Current: Detector: 30mA max; Host: 150mA max

LCD Size: 3.5 inch color screen; Display area: 71mm×53mm

Instrument Dimension

Host195mm×100mm×45mm；Detector :130mm×65mm×45mm

Insulation Rod Length

Max Diameter: Φ45mm: Length: contraction state 1000mm; stretched state:4500mm

Insulation Test

The insulation rod stretched to both ends: AC 220kV/rms; host, detector AC3700V/rms
