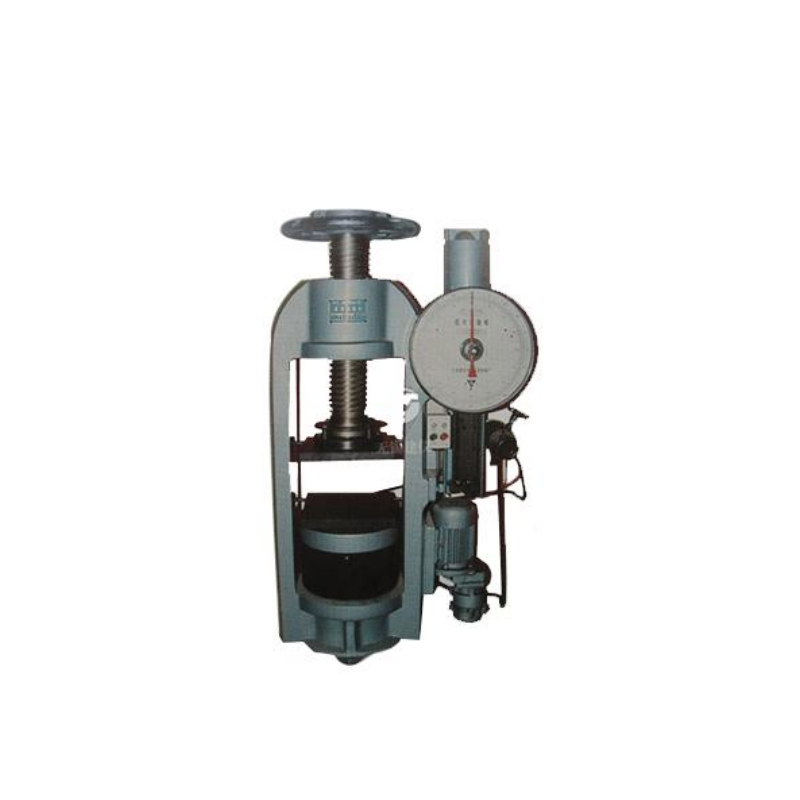

Wuxi NYL-2000D Pressure Testing Machine (2000kN)

Purpose: The pressure machine is mainly used to determine the compressive strength of various materials. The test force can be read directly on the dial of the dynamometer, and also used to suppress leather products and commemorative badges.

The maximum testing force of the testing machine: 2000kN

Maximum working pressure of oil pump: 40MPa

relative error of indicating value: ±2%

Pressure plate size: 320×320 mm

Maximum spacing of pressure plate: ＞320mm

Travel of piston: 25mm

Scale value: 0～2000kN, 5kN/metre

Dimensions (length x width x height): 800×600×1450mm

Net dry weight: 1000kg

Packing dimensions (length x width x height):1250×800×1800mm

Shipping Weight: 1085kg(wooden box)
