Working Position: 4 Pcs
Specimen Dimension: 75mmx60mm
Cylinder Diameter: 30mm
Test Displacement: 0-6 mm adjustable
Test speed: 50 crycles /min
Control: PLC Touch Screen
Dimension: 410mmx500mmx380mm
weight: 50kg
Power Supply: AC220V 50HZ

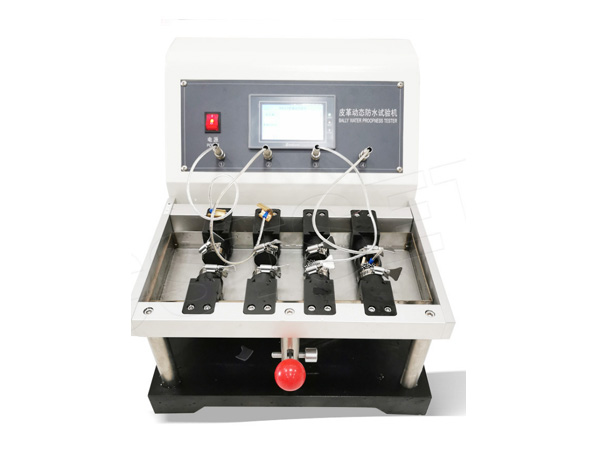

Product Description: XHF-81 Bally Water Resistance Tester is used to determine the water penetration for various shoe upper materials as leather,synthetic leather,cloth etc.cut the specimen,then place it into the machine,immersing the specimen into water and flexing it to measure Penetration index or the based of or improve the materials ,water-proof processing.leather,leather,cloth etc
Test Standards: EN 420-4.2, DIN-53338, EN-20344, ISO 5403-1: 2011
Product Features
Mechanical parts are composed of non-corrosive structure and stainless steel materials.
Body surface treatment: US DuPont powder, electrostatic spray paint process, curing at high temperature 200 ℃ to ensure that the color will not fade for a long time.
Color LCD touch screen control and display, human-computer interaction interface, simple operation, convenient maintenance, stable and reliable.
It can be adjusted by jog, and the distance between clamps can be adjusted.
Independent sensing probe, independent research and development of water leakage system.
Stainless steel tank, adjustable up and down movement.
Water leakage will stop automatically, and the system will display.
