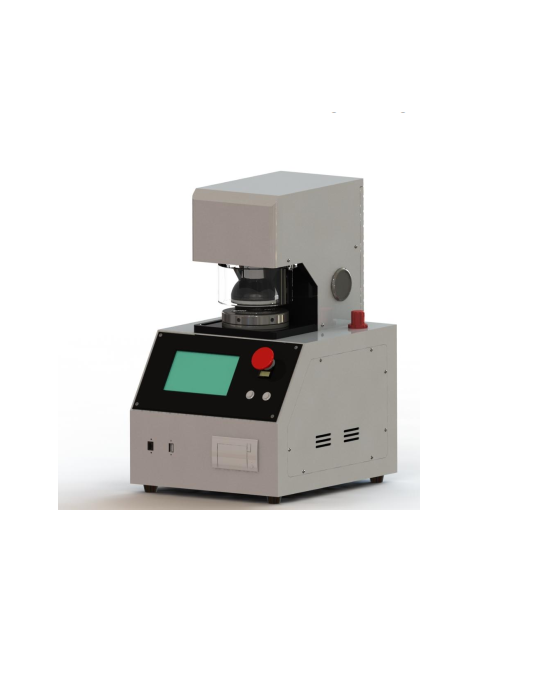

XHinstruments XHV-02D Pneumatic Bursting Strength Tester

Hydraulic oil: Silicon Oil

Indicating way: 7 Inch Touch screen display

System sealing performance: Pressure drop < 10%FS within 1 minute

The Diameter of upper Platen hole mm: 31.5±0.05

The Diameter of Lower Platen hole mm: 31.5±0.05

The resistance of rubber diaphram Kpa: When raise 10mm,170-220, When raise 18mm,250-350

The tension between two platen Kpa: 100-1200 (Adjustable, With a voltage stabilization function, it ensures stable clamping force)

Testing Range Kpa: 250-5600

Testing Accuracy: Within ± 0.5 % of Indication value for F.S

Resolution Kpa: 0.01

Oil ml/min: 170±15

Weight: 55kgs

Power Supply: 220V, 50Hz, 1 pH

Standard Configuration: Main Machine, power line, special spanner, 3 Pcs Membrane for replacement, 2 rolls printer paper

Optional Configuration: Air Compressor
