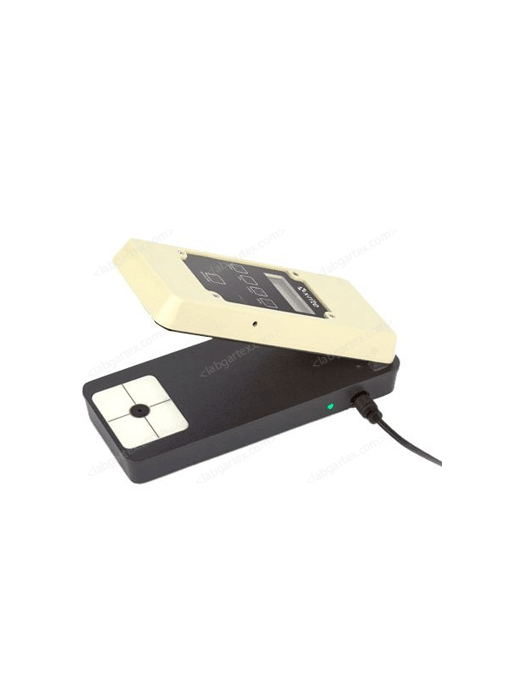

Xrite 341C Portable Transmission Densitometer

Short Term Repeatability - Density:

2 mm and 3 mm aperture: 0.0 D to 4.0 D: ± 0.01 D

3 mm aperture: 4.0 D to 5.0 D: ± 1 %

Measurement Geometry: Per ANSI PH 2.19, ISO 5/2

Linearity:

2mm and 3mm aperture: 0 to 4.0 D: ± 0.02 D

3mm aperture: 4.0 D to 5.0 D: ± 2 %

Aperture: 2 mm and 3 mm

Humidity: 30% to 76% RH

Operating Temperature Range: 10°C to 40°C (50°F to 104°F)

Storage Temperature Range: -20° to 50°C (-4° to 122°F)

Dimensions (L x W x H): 17.8 cm x 7.5 cm x 5.1 cm

Weight: 690 g (1.52 lbs.)

Battery: NiMH batteries

Battery Life: > 1000 Measurements

Voltage: 12 VDC @ 1.2 A

Warm Up Time: None

Density Range: 0.0 D to > 5.0 D; 0% to 100%

Density Standards: ANSI Visual

Industry Standards: ISO 5-2, ANSI PH2.19
