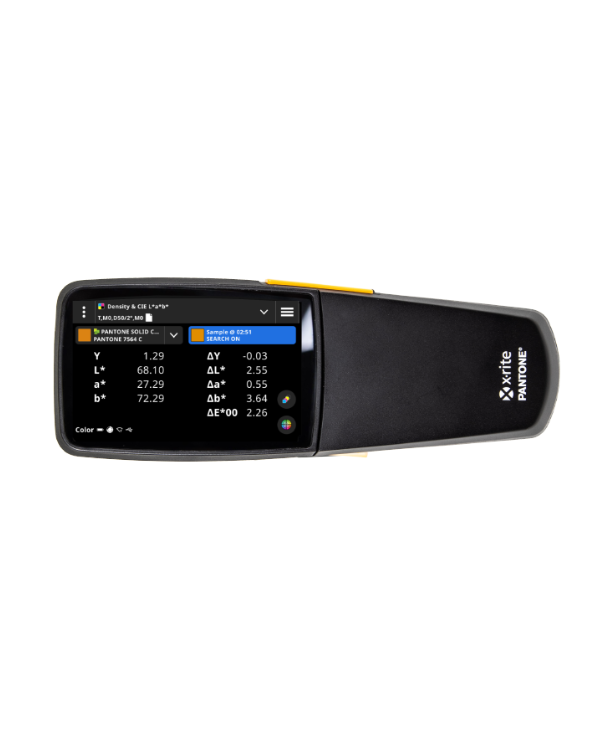

Xrite eXact 2 Portable Spectrophotometer

Aperture: 1.5 mm, 2 mm, 4 mm or 6 mm

Battery: Lithium Ion, 3.63VDC, 4750mAh

BestMatch Feature: Yes

Calibration: Automatic on white reference

Color Differences: CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)

Color Spaces: CIE L*a*b*, CIE L*C*h°

Communication Interface: USB-C; Wi-Fi

Connectivity: USB-C; Wi-Fi

Density Range: 0.0 D – 3.0 D

Density Standards: Status A, E, I, T and G

Dimensions (length, width, height): 21.2 cm x 7.7 cm x 7.7 cm (LxWxH) 8.4" x 3.0" x 3.0" (LxWxH)

G7 Certification: Yes with embedded G7, PSO, Japan Color job templates

Humidity: 30 to 85% RH (non-condensing)

Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12

Import/Export Format: CxF3

Industry Standards ISO 5-4:2009(E), ISO 13655:2017

Instrument Display: Color touch-screen, 800 x 480 pixels

Inter-Instrument Agreement: Average: 0.25 ΔEab, Max: 0.45 ΔEab (for M3: 0.55 ΔEab)

(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))

Languages Supported: Bulgarian Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese

Light Source: LED

Macintosh: macOS 10.15, macOS 11, macOS 12

Measurement Conditions: 2: M0, M1 (method 2), M2, M3

Measurement Geometry 45°:0° ring illumination optics, ISO 13655:2017

Measurement Time: < 1 sec

NetProfiler Support: Yes

Observers: 2° and 10°

Operating Temperature Range: 10°C to 35°C, 50°F to 95°F

PantoneLIVE Support: Yes; Embedded Pantone Libraries

Pass / Fail: Yes

Scan Length: Max: 1,120mm (44”)

Scanning Capability: Yes, Embedded Scanning

Service Indicator: Certification Reminder

Short Term Repeatability - Density: +/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)

Short Term Repeatability - White: 0.02 ΔEab (standard deviation) White BCRA (Error compared to mean value of 20 measurements every 5 seconds)

Single Pass Scan: M0, M1, M2, M3

Software Development Kit: Yes

Spectral Analyzer: DRS spectral engine

Spectral Interval: 10 nm

Spectral Range: 400 nm to 700 nm

Standards: Memory capacity for more than 50,000 standards

Storage Temperature Range: -20° to 50°C, -4° to 122°F

Supported Substrates: Paper, corrugated, carton board

User Experience: Start-up wizard, configurable, customize toolset, upgradable

Voltage: 12 VDC @ 2.5 A (Docking Station Power Supply)
