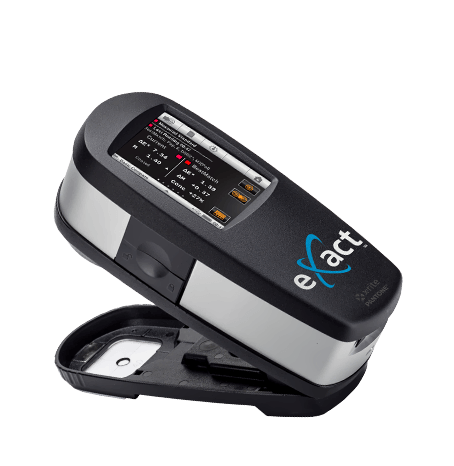

Xrite eXact Advanced Portable Spectrophotometer (400nm ~700nm)

Aperture: 1.5mm, 2mm, 4mm, 6mm

Battery: Lithium Ion, 7.4VDC, 2200mAh

BestMatch Feature: Yes

Calibration: Automatic on integrated white reference

Color Differences: CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)

Color Spaces: CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy

Communication Interface: USB 2.0; Bluetooth (optional) - Class II

Configuration Options: Bluetooth, NetProfiler, Multiple User Profiles with Password Protection

Density Range: 0.0 D – 3.0 D

Density Standards: Status A, E, I, T and G

Dimensions (length, width, height): 18 cm x 7.8 cm x 7.6 cm; 7.1" x 3.1" x 3.0"

Humidity: 30 to 85% RH (non-condensing)

Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12

Industry Standards: ISO 5-4:2009(E), ISO 13655:2009

Instrument Display: Color touch-screen, 320 x 240 pixels

Internal Temperature & Humidity Sensor: 30 to 85% RH (non-condensing)

Languages Supported: Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Macintosh: MacOS X 10.10, 10.11, 10.12, 10.13

Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)

Measurement Time: < 1 sec

Operating Temperature Range: 10°C to 35°C; 50°F to 95°F

Pass / Fail: Yes

Scanning Capability: Yes (Optional Upgrade)

Short Term Repeatability - Density: '+/- 0.01 D for CMYK

Short Term Repeatability - White: 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds)

Software Development Kit: Yes

Spectral Analyzer: DRS Spectral Engine

Spectral Interval: 10nm

Spectral Range: 400nm to 700nm

Storage Temperature Range: -20° to 50°C; -4° to 122°F

Supported Devices: Works with ColorCert, InkFormulation, NetProfiler

Voltage: 12 VDC at 2.5 A

Weight: 700 g, 1.6 lbs.

- USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
