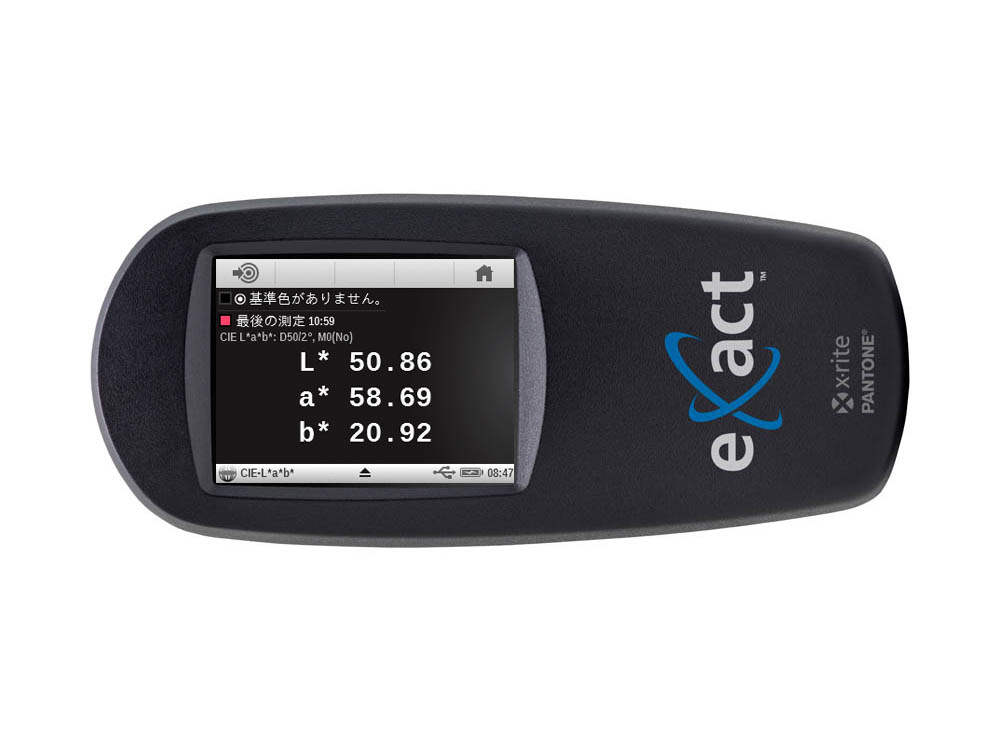

Xrite eXact Basic Spectro Handheld Spectrophotometer (w/o bluetooth, 2mm)

Color Differences: CIE1976ΔE*ab、ΔE94、ΔE2000，ΔEcmc

Color Spaces: CIEL*a*b*、CIEL*C*h

Illuminants: D50

Import/Export Format: CxF3

Observers: 2°

Spectral Interval: 10 nm

Voltage: 12 VDC @ 2.5 A

Aperture: 2mm

Battery : Lithium Ion, 7.4VDC, 2200mAh

BestMatch Feature: No

Calibration: Automatic on integrated white reference

Communication Interface: USB 2.0

Connectivity: USB 2.0

Density Range: 0.0 D – 3.0 D

Density Standards: Status A, E, I, T and G

Dimensions (length, width, height):

18 cm x 7.8 cm x 7.6 cm

7.1" x 3.1" x  3.0"

Embedded NetProfiler Support: No

G7 Certification: No

Japan Color Certification Job: Yes

Library Function: No

Humidity: 30 to 85% RH (non-condensing)

Industry Standards: ISO 5-4:2009(E), ISO 13655:2009

Instrument Display: Color touch-screen, 320 x 240 pixels

Internal Temperature & Humidity Sensor: Internal Temperature & Humidity Sensor

Languages Supported: Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Measurement Conditions: M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates

Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)

Measurement Time: < 1 sec

NetProfiler Support: No

Operating Temperature Range:

10°C to 35°C

50°F to 95°F

PantoneLIVE Support: Yes

Pass / Fail: Yes

Service Indicator: Certification Reminder

Short Term Repeatability - Density: "+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)"

Software Development Kit: Yes

Spectral Analyzer: DRS spectral engine

Spectral Range: 400 nm to 700 nm

Spectral Reporting: 400nm to 700nm with 10nm interval

Storage Temperature Range:

-20° to 50°C

-4° to 122°F

User Experience: Start-up wizard, configurable, upgradable

Weight:

700 g

1.6 lbs.

What's Included?: USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate

Windows Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
