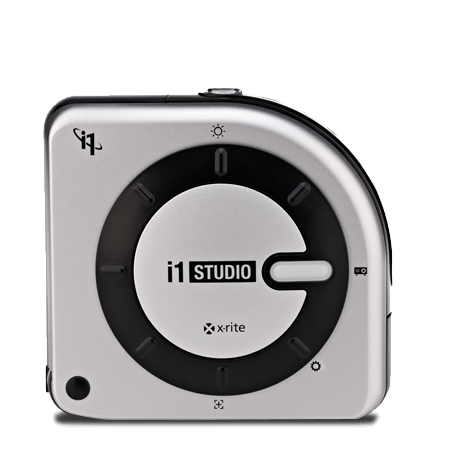

Xrite i1Studio Color Calibration & Profiling (45° / 0°, 6mm)

Aperture: 6mm

Inter-Instrument Agreement: Inter-instrument agreement: 0.6ΔE*2000 average, max. 1.5ΔE*2000 max. (deviation from X-Rite i1Studio manufacturing standard at a temperature of 23°C for single measurement mode on 12 BCRA tiles D50, 2°)

Languages Supported: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish

Light Source: White LED

Macintosh:

- MacOS X 10.13x, 10.14x or 10.15x (with latest upgrades installed)

- 512MB RAM (2GB recommended)

- Intel® Core 2 Duo CPU or better CPU

- Up to 500MB of available disk space (depending on components installed)

- Powered USB port

- Monitor resolution of 1024 x 768 pixels or higher

- Latest drivers for video card installed

- High-speed internet connection required for software install, download and automatic software update

- User must have Administrator rights to install and uninstall the application

Measurement Conditions: UV Cut (M2)

Measurement Geometry: 45° / 0°

Mobile Device Compatibility:

- ColorTRUE Mobile Device Compatiblity

- Apple iOS:

• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later

• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later

• iPod Touch running iOS 7.x or later

Spectral Analyzer:

- Spectral analyzer: holographic diffraction grating with diode array

- Spectral reporting: 10 nm, between 380nm, and 730nm

Windows:

- Microsoft Windows 7® 32 or 64 bit

- Microsoft Windows 8® 32 or 64 bit

- Microsoft Windows 8.1® 32 or 64 bit

- Microsoft Windows 10® 32 or 64 bit

- All operating systems should have latest Service Pack installed

- 512MB RAM (2GB recommended)

- Intel® Core 2 Duo or AMD Athlon™ XP or better CPU

- Up to 500MB of available disk space (depending on components installed)

- Powered USB port

- Monitor resolution of 1024 x 768 pixels or higher

- Latest drivers for video card installed

- Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded

- Network adaptor installed and driver loaded

- High-speed internet connection required for software install, download and automatic software update

- User must have Administrator rights to install and uninstall the application

Short Term Repeatability Emissive: x, y: ±0.002 typical (5000K @ 80 cd/m2)

Short Term Repeatability Reflective: 0.1ΔE*2000 (D50, 2°) typical, mean value of 10 measurements on white
