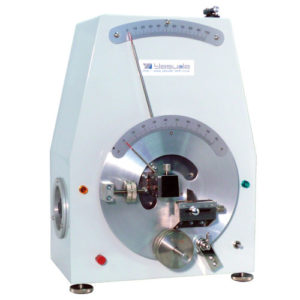

Yasuda 118 Olsen Type Stiffness Tester (Heavy Load Type)

Moment: Max. 5 lb⋅in (1 lb = 453 g)

Load Scale: 0 to 100 % (Scale 1 %)

Weight: 0.5 lb: 1 pc, 1 lb: 2 pcs

Load Position: 4″ from Pivot

Angle Scale: 0 to 90° (Scale 1°)

Chuck Rotation Speed: 60°/min

Specimen: W5 ± 0.5 mm or 13 ± 0.5 mm, L60 mm or more, T1.0 ± 0.1 mm or T2.0 ± 0.2 mm

Support Length: 7 to 50 mm

Chuck Width: 30 mm

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/ Weight (Approx.): W340 × D300 × H460 mm/ 10 kg
