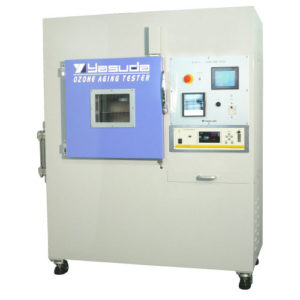

Yasuda 187 Ozone Cracking Tester

Ozone Density: 20 to 250 pphm

Ozone Generator: Ozone Lamp

Oven Dimensions: 500 × 500 × 500 mm (Volume of 0.125 m3)

Ozone Density Measuring and Adjusting Device: Ultraviolet Absorption Method Indication and Recording, PID Control

Temperature Range: Max. 70 °C

Timer: Test Timer (Reset Type), Lamp Life Timer (Running Type)

Static Tensile Device: Tensile Strain 0 to 100 %, 16 Hangings, Rotation Speed 2 rpm

Dynamic Tensile Device (Option): Reciprocal Motion Frequency 0.5 ± 0.025 Hz (30 ± 1.5 times/min), 12 Hangings

Option: Revolution Static Tensile Strain Device

Power Source: AC 200 V, 3-Phase, 20 A, 50/60 Hz
