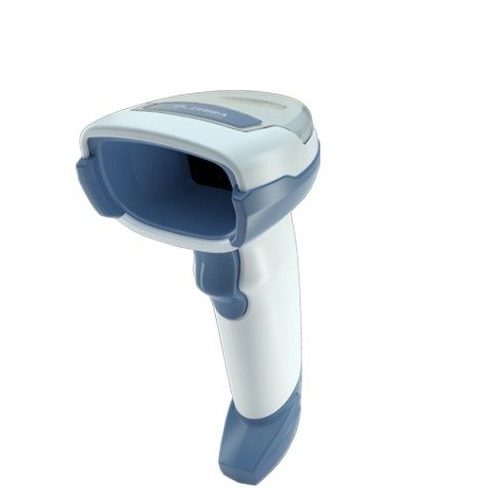

Zebra DS4600 Healthcare Scanner (1D, 2D scanning)

Dimensions: 6.5in. Hx2.6in. Wx3.9in. D

16.5cm Hx6.7cm Wx9.8cm D

Weight: 5.7oz./161.9g

Input voltage range: 4.5 to 5.5 VDC Host Powered;

4.5 to 5.5 VDC External Power Supply

Operating current at nominal voltage (5.0V): 375mA (typical)

Standby current (Idle) at nominal voltage (5.0V): 150mA (typical)

Color: Healthcare white

Supported host interfaces: USB, RS232, TGCS (IBM) 46XX over RS485

Light source: Aiming Pattern: circular 528nm true green LED

Imager field of view: 35°H x 22°V nominal

Image sensor: 1280x800 pixels

Minimum print contrast: 15% minimum reflective difference

Skew tolerance: +/-60°

Pitch tolerance: +/-60°

Roll tolerance: 0°-360°
