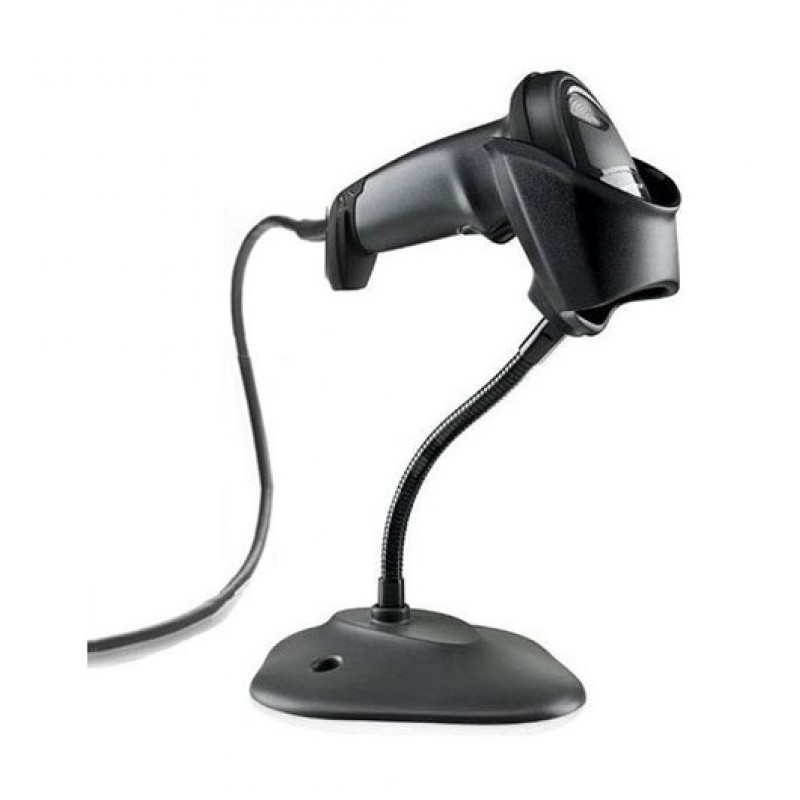

Zebra DS4608 2D Barcode Scanner

Size: 16.5 cm H x 6.7 cm W x 9.8 cm D

Light: Green Light - Wavelength 528 nanometers (nm)

Operating Current (5V): From 4.5 to 5.5 VDC

Decode Range:

Code 128: 5 mil: From 4.3 cm to 12.7 cm

Code 39: 20 mil: From 1.5 cm to 73.7 cm

Code 39: 3 mil: From 3.3 cm to 15.2 cm

Code 39: 5 mil: From 0.3 cm to 29.2 cm

DataMatrix: 10 mil: From 0.5 cm to 24.1 cm

PDF 417: 6.7 mil: From 1.5 cm to 23.6 cm

QR: 20 mil: From 0 cm to 34.3 cm

UPC: 13 mil (100%): From 0 cm to 45.7 cm

Light Source: Warm White LED

Power Supply: 4.5 - 5.5 VDC

Data Capture:

Image Sensor: 1280 x 800 pixels

Pitch Angle Tolerance: +/-60°

Skew Tolerance: 0° - 360°

Roll Tolerance: +/-60°

Field of View: 35° H x 22° V nominal

Image Format Support: Decode bitmap images, JPEG, or TIFF

1D Barcode Support:

Base 32 (Italian Pharma)

Codabar/NW7

Code 11

Code 128

Code 39

Code 93

GS1 DataBar

I 2 of 5

Korean 3 of 5

MSI Plessey

UPC/EAN

2D Barcode Support:

Aztec

Composite Codes

DataMatrix

Han Xin

MaxiCode

Micro PDF417

Micro QR

PDF417

Postal Codes

QR Code

securPharm

TLC-39

Minimum Resolution: Code 39 - 2.0 mil / DataMatrix - 4.0 mil

Minimum Print Contrast (MPC): 15%.
