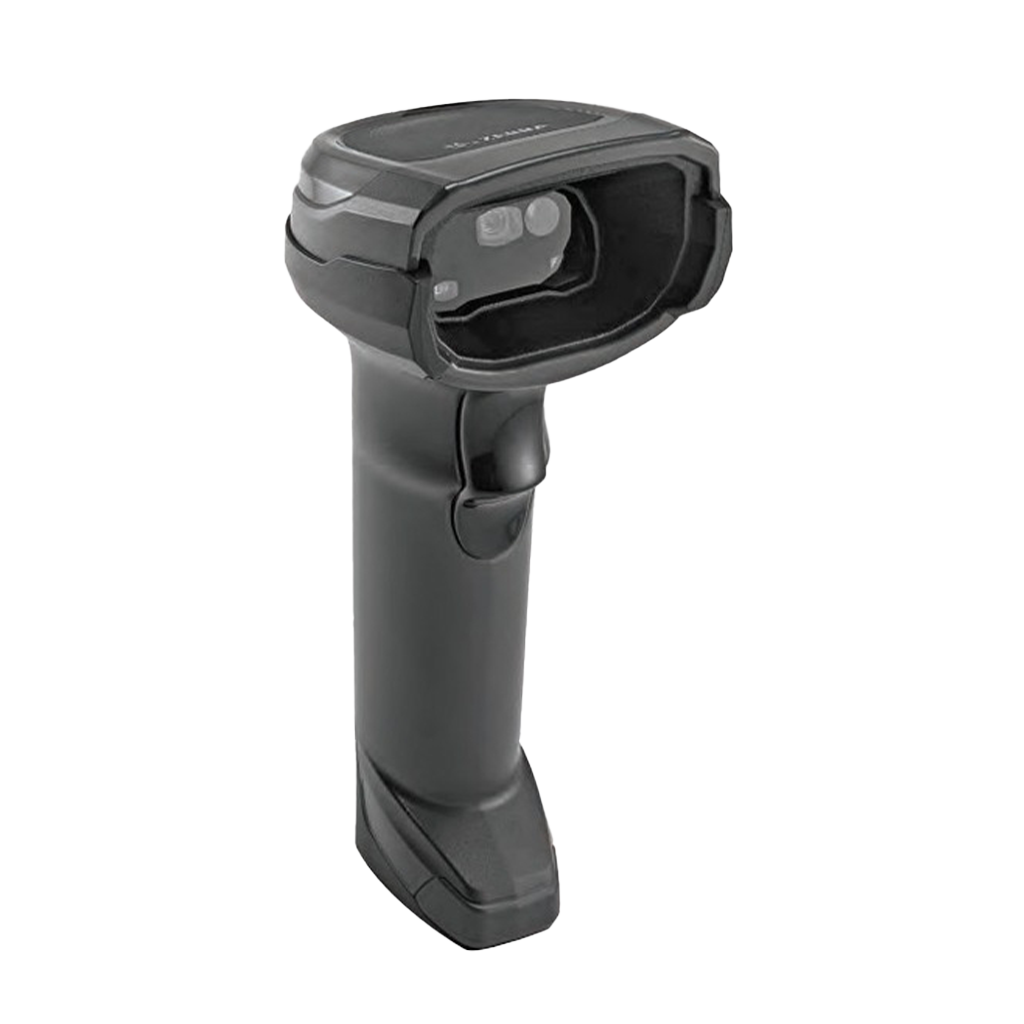

Zebra DS4678-DPE Barcode Scanner (1280 x 800 pixels)

Interface: USB, RS232, TGCS (IBM) 46XX over RS485

Barcode Reading: 1D, 2D

Dimensions (H × W × D): 16.5 cm × 6.7 cm × 9.8 cm

Weight: 161.9 g

Keyboard Support: Supports over 90 international keyboards

Image Sensor: 1280 × 800 pixels

Minimum Print Contrast: 15% minimum reflective difference

Operating Temperature: 0°C to 50°C

Storage Temperature: -40°C to 70°C

Humidity: 5% to 95% RH (non-condensing)

Protection Rating: IP52

Power Supply: 4.5 to 5.5 VDC (Host Powered or External Power Supply)

ESD Protection: Complies with EN61000-4-2; ±15 kV Air Discharge, ±8 kV Direct Discharge, ±8 kV Indirect Discharge

Bluetooth: Standard Bluetooth version 5.2 with BLE

Class 1: 330 ft (100 m) range

Class 2: 33 ft (10 m) range

Supported Profiles: Serial Port and HID

Adjustable Output Power:

 – Class 1: adjustable down from 2 dBm in 8 steps

 – Class 2: adjustable down from 0 dBm in 8 steps
