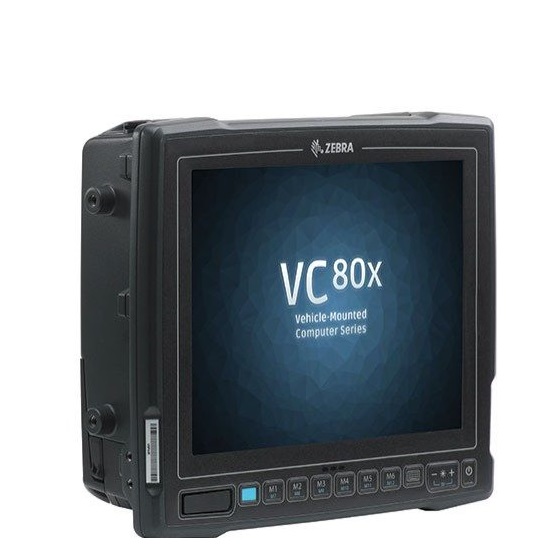

Zebra VC80 Vehicle-Mounted Computer (USB, RS-232, Bluetooth)

Dimensions: 10.4(L)x9.3(W)x3.5(D)”/

265(L)x235(W)x90(D)mm

Weight: 8.6lbs./ 3.9kg

Power: Internal power supply 12-48V nominal, designed for forklift power

Display: • 10.4” color XGA (1024x768) LCD

• 24-bit color depth

• Choice of 400 or 1,000 NITs

• LED backlight

Touchscreen: Resistive touchscreen with passive stylus or finger operation

Freezer version: integrated touchscreen heater evaporates external condensation

when moving out of and into freezers

Keys: • Six (6) programmable macro keys

• Keyboard key

• Volume

• Brightness

• Blue key for 2nd level functions

• On/off key

Interface ports: • Standard sealed and secured connectors

• 2 RS-232 serial ports

• 1 standard USB port

• 1 powered USB port

• 1 3.5 mm audio jack

• Optional Ethernet (10/100/1000Mbps) or isolated CAN port

with SAE J1939 support

Scanner support: Handheld scanners and imagers connected via USB, RS-232 or Bluetooth

Datasheet
