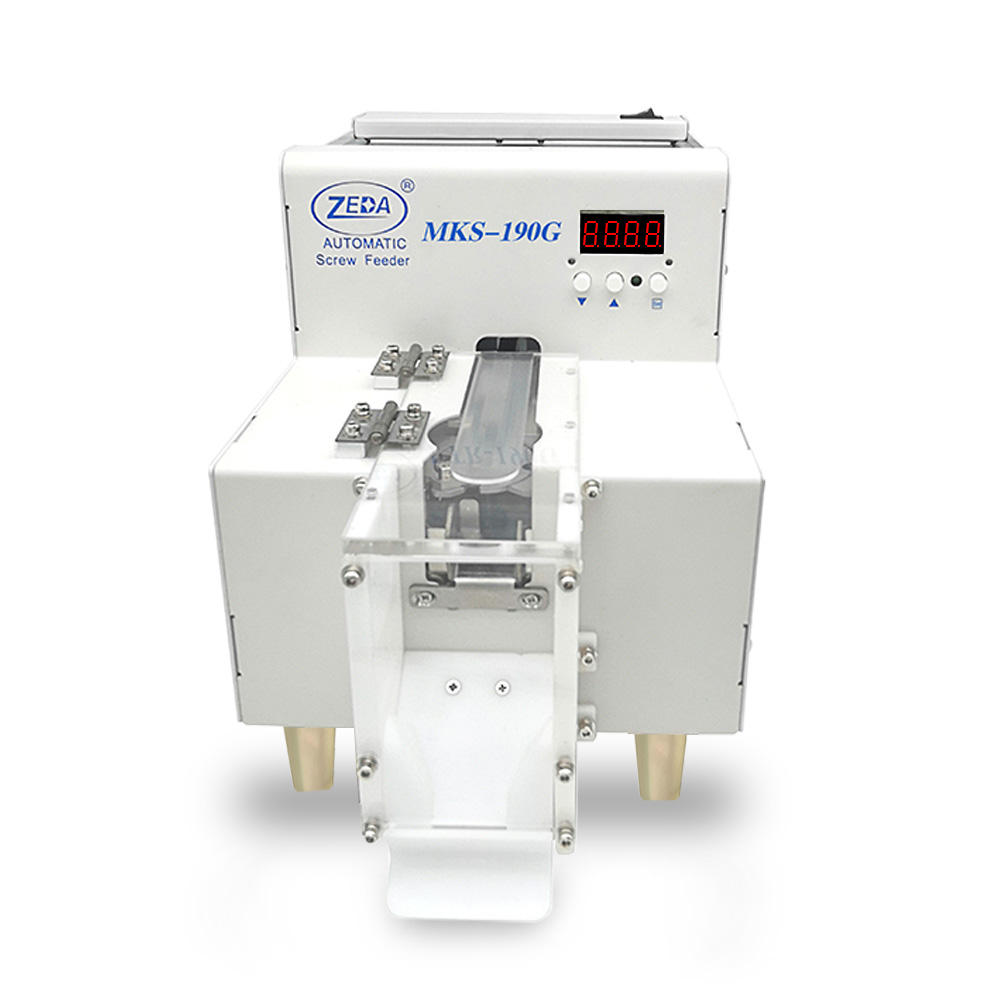

Zeda MKS-190G Automatic screw feeder (M2.0 ~ M5.0)

Power supply: 100240VAC, 50/60Hz, 12A

Rated power: 20W

Screw feeding method: Mechanical transmission

Screw feeding speed: 60 ~ 90 pcs/min

Working voltage: 15V DC (500mA)

Weight: 4.1 kg

Screw capacity of container: 450ml

Suitable screw diameter: M2.0 ~ M5.0

Workable screw length: ≤16 mm

Product size: 326162222 mm (LWH)

Product features:

It is a high accuracy digital screw counting machine, counting range -9999 as you want, usually suitable for screws or other small parts with counting package, setting goal quantity for screws, it can avoid missing locking screws; Once a setting counting goal has finished, it will be started to next automatic processing;

It can be working with automatic locking screw platform (half-full automatic machine) use by PLC, supports unusual/uncommon screws, 1:1 shortage screws, screws with gap, reduce labor cost and decrease labor intensive;

Usually use for home appliance products, such as printer, radio, automatic parts, toys etc.

Packaging included:

1 * Automatic screw feeding device

1 * Manual operation instruction

1 * Internal hexagonal wrench

2 * Power adapter with cable
