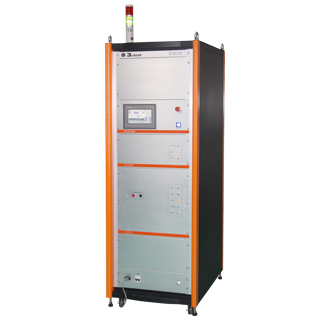

3ctest CSG 2050 Surge (Impulse) Current Simulator (20kA±10%)

Output waveform: 20/50μs（±10%) current wave

Output peak current: 20kA±10%

Reversed polarity peak: ＜20％

DUT residual voltage: < 3kV

Voltage polarity: +/- （automatic switch)

Charging time: 10s~999s

Charging voltage instability: Less than 1%

Trigger mode: Automatic or manual, single trigger

Trigger malfunction: Less than 1%

Trigger range: 100% rated charging voltage

Measurement display resolution: Better than 3%

Insulation strength: ≤500V RMS（common port COMMCN to reference ground PE）

Auxiliary mains voltage: 220V(±10%)/50Hz

Auxiliary mains current: <10A（continuous）

- Calibration parameters:

Rise time: 20 μs±10%

Time to half value: 50μs±10%

First measurement range

Short circuit output peak current:

1kA-0%/﹢30% @2kV

2kA-0%/﹢30% @4kV

3kA-0%/﹢30% @6kV

4kA-0%/﹢30% @8kV

5kA-0%/﹢30% @10kV

Second measurement range

Short circuit output peak current:

4kA-0%/﹢30% @2kV

8kA-0%/﹢30% @4kV

12kA-0%/﹢30% @6kV

16kA-0%/﹢30% @8kV

20kA-0%/﹢30% @10kV

- General data:

Power supply: AC220V ± 10%，50/60Hz

Temperature: -10~+40℃

Humidity: 35%-85%RH（no condensation）

Ground resistance: No more than 0.5Ω

Dimension: 1730x600x700mm（35U）

Weight: Approx. 200kg

No conductive dust, no fire or explosion danger, no corrosive metal and insulation air.

Waveform of mains voltage is sine wave. The THD is <5%.
