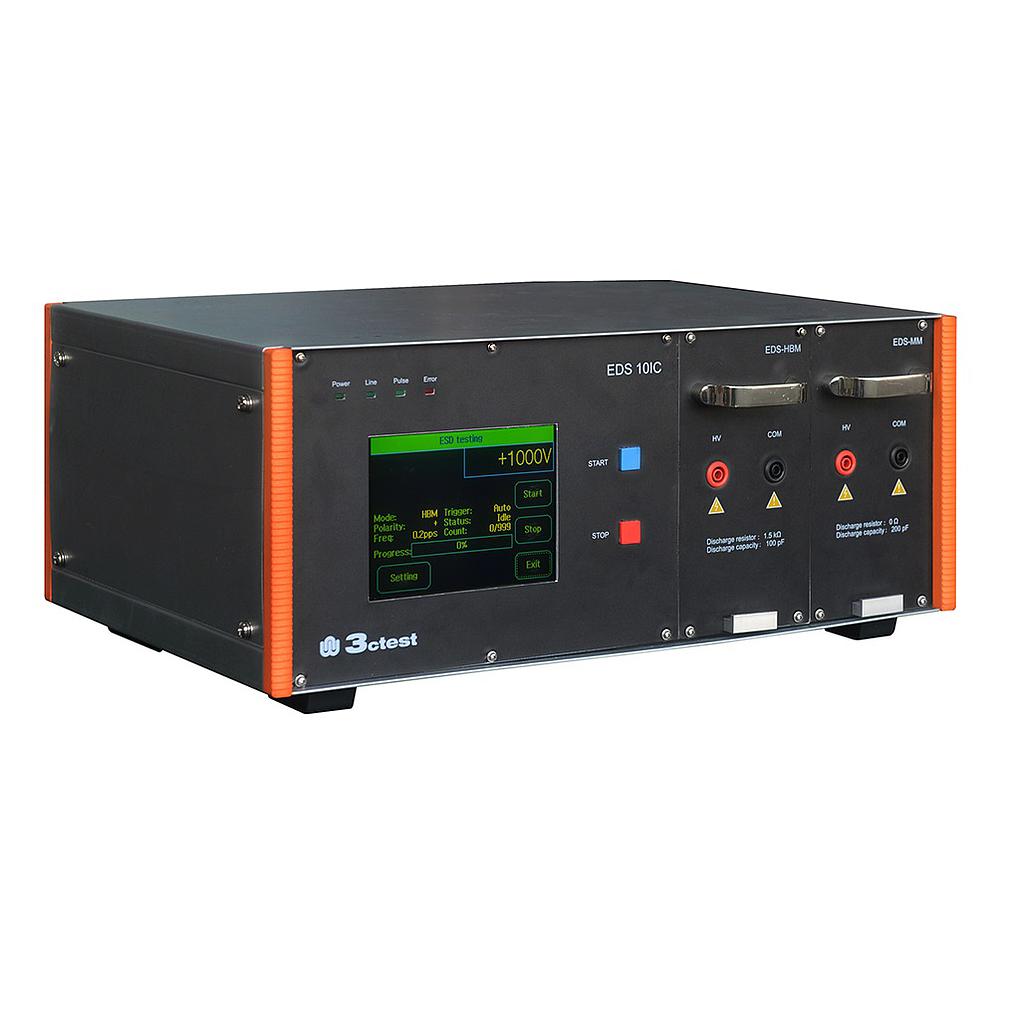

- Technical Parameters:
HBM Short Circuit Current Parameters:
Discharge Capacitor: 100 pF
Discharge Resistance: 1500 Ω
Pulse amplitude: 5~8000V(5%±5V)
Peak Current Ips:
0.17 A ±10% @250 V
0.33 A ±10% @500 V
0.67 A ±10% @1000 V
1.33 A ±10% @2000 V
2.67 A ±10% @4000 V
5.33 A ±10% @8000 V
Rise Time: 2 ns ~10 ns
Pulse Width: 150 ns + 20 ns
Ringing Amplitude: <15% peak current
HBM 500 Ω Resistor Current Parameters:
Peak Current Ipr:
375 mA ~550 mA @ 1000 V
1.5 A ~2.2 A @ 4000 V
Ipr/Ips: ≥ 63%
Rise Time: 5 ns ~25 ns
MM Short Circuit Current Parameters:
Discharge Capacitor: 200 pF
Discharge Resistance 0 Ω
Pulse amplitude: 5~1000V (5%±5V)
Peak Current Ip1:
0.44 A ±20% @25 V
0.88 A ±20% @50 V
1.75 A ±10% @100 V
3.5 A ±10% @200 V
7.0 A ±10% @400 V
Ip2/Ip1: 67%~90%
Cycle: 66 ns ~90 ns
MM 500 Ω Resistor Current Parameters:
Peak Current Ipr: 0.85 A ~1.2 A @ 400 V
100 ns Current Value I100: 0.23 A ~0.40 A @ 400 V
I200/I100: 30%~55%
- General Parameters:
Output Voltage:
HBM 5 ~ 8000 V (5%+5 V)
MM 5 ~ 1000 V (5%+5 V)
Polarity: +/-/alternate
Frequency: 0.1 Hz~5 Hz
Trigger Times: 1~999
Trigger Mode: Auto/ Manual/ external trigger
Input Power Supply:
AC 100 V~240 V, ±10%
50 Hz/60 Hz
Ambient Temperature: 15℃~35℃
Storage Temperature: -10℃~50℃
Relative Humidity: 25%~75%
Dimension: 450 mm（L）x190 mm（W） x320 mm（H）
Weight : 10 kg
