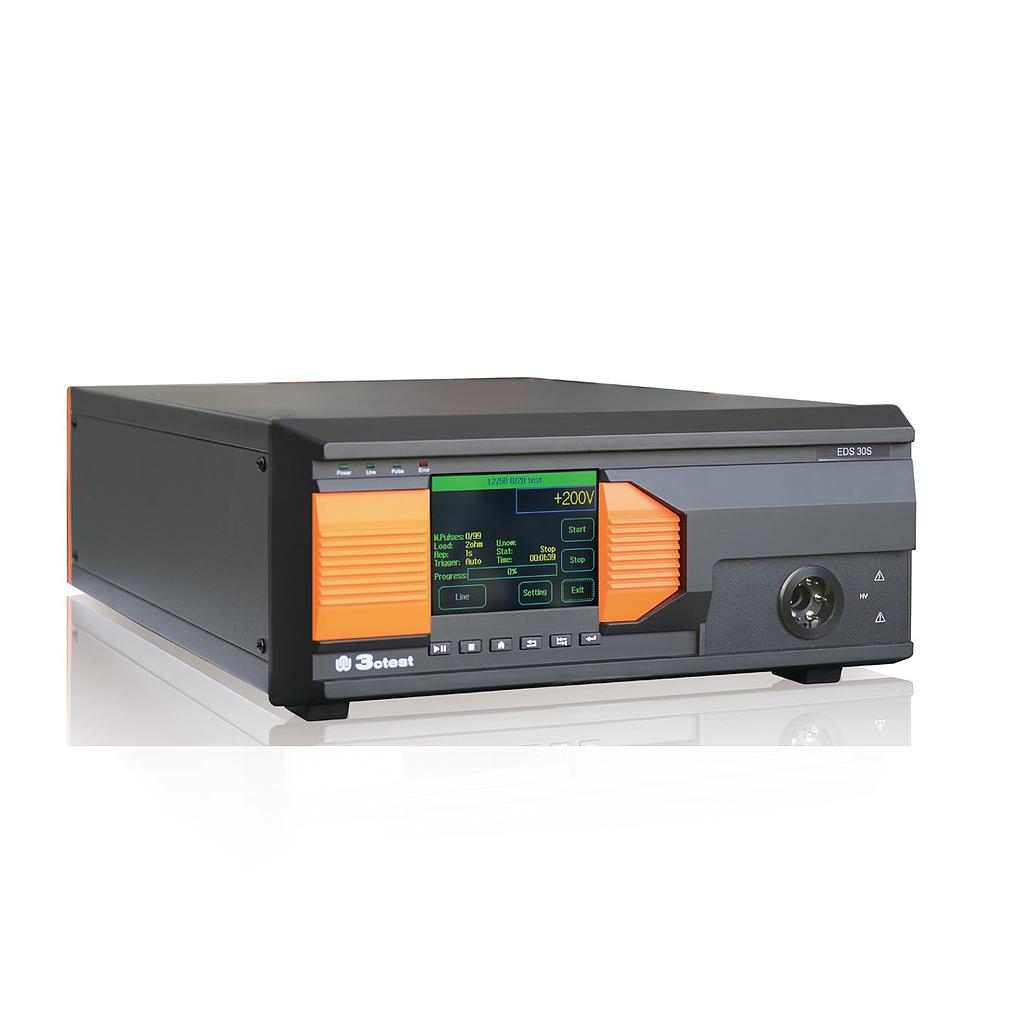

3ctest EDS 30S Electrostatic Sensitivity Tester (10 V~ 30 kV)

- Technical Parameter:

Output Voltage: 10 V~ 30 kV

Tolerance: ±5%±2 V

Polarity: Positive, negative or alternative (first positive and then negative)

Repetition Time: 10~99 s

Repetition Number: 1~99

Trigger Mode: Manual/Auto/External Trigger

Charging Capacitor: 500 pF/2 nF ±5%

Serial Discharging Resistor: 500 Ω/5000 Ω ±5%

- General Parameter:

Working Power: AC 110 V/220 V，±10，50/60 Hz（default 220V in mainland China)

Fuse: 6 A

Max. Power Consumption: 100 W

External Trigger Input: BNC, 5V TTL, the node is open usually and triggered when closed;

Ambient Temperature: 15 ℃ ~ 35℃

Relative Humidity: 45% ~ 75%

Atmospheric Pressure: 86 kPa ~ 106 kPa

Weight: Approx. 15 kg

Dimension: 19”/4U
