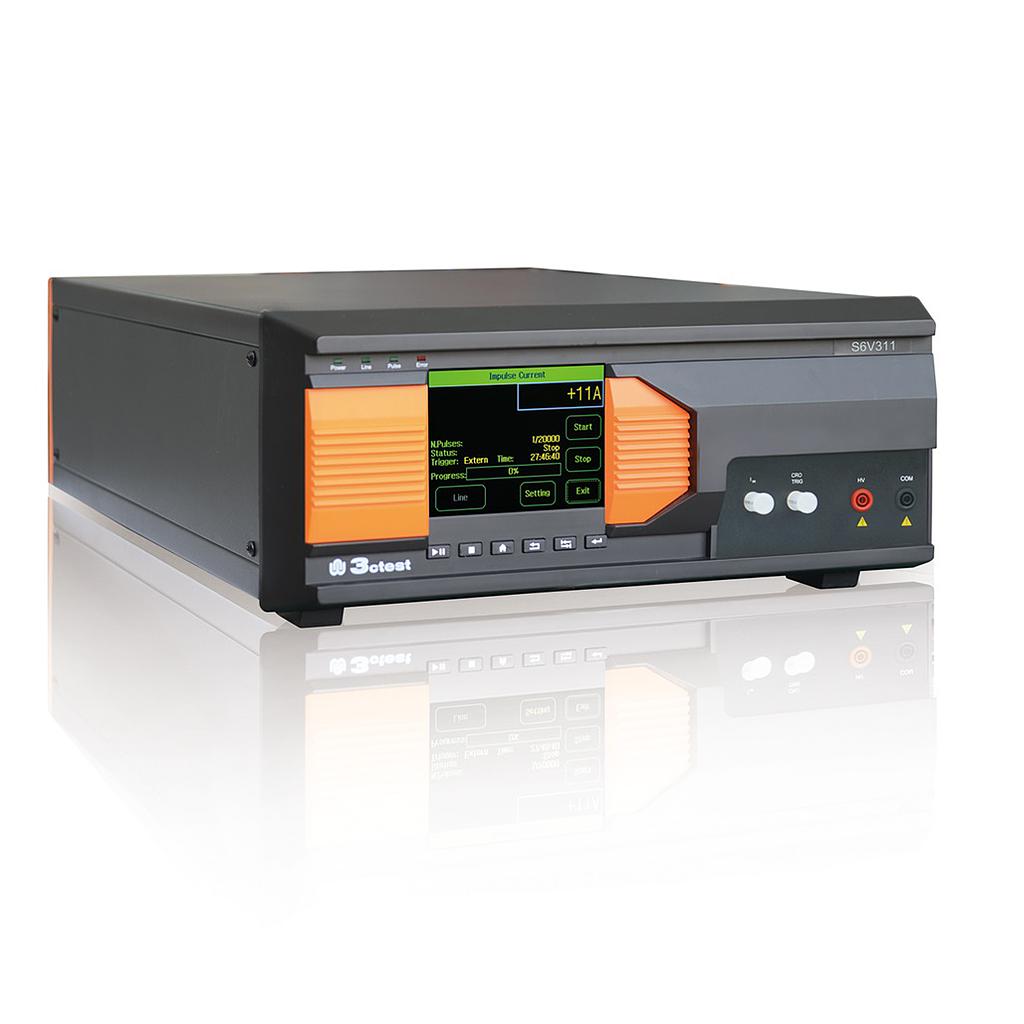

3ctest S6V311 Impulse Voltage Test System (500V～4500±10%)

- General data:

Display screen: 5.7 inch TFT color touch screen

Power supply: AC 110 V / 220 V, ± 10%, 50 / 60 Hz ± 5%(default AC 220 V 50 Hz)

Fuse: 6 A

Max. Power consumption: 100 W

Memory space: infinite（PC）

Communication mode: Ethernet, RJ 45

External control: D-sub 25 p

External trigger input: BNC, 5V TTL

CRO trigger output: BNC, 5V TTL

Input: BNC, 5V TTL

Warning LED: 0-220VAC 10A/0-48VDC 3A

Depending on external signal lamp

Safety circuit: Test only can be started when it is closed

Failure test: Display on LCD and interrupt the work at failure case

Working indicator: LED, LCD front panel display

Grounding connection: Flat ground line

Size: 19 inch / 4U

Weight: Approx. 15 Kg

Temperature: 15 - 35℃

Humidity: 45% - 75%

Air pressure: 86 kPa - 106 kPa

- Impulse voltage test as per IEC 61643- 1 & GB/T 18802.1:

SURGE module

Standard: IEC 61643-311、GB / T 18802.311

Test voltage: 500V～4500±10%

Voltage waveform: Front time: 1.2 μs ± 30 %

Time to half value: 50 μs ± 20 %

Source output impedance: 500ohm

Output polarity: +/-

Pulse cycle: 10s-99s

Number of test: 1 - 999次

Trigger mode: Automatic, manual and external
