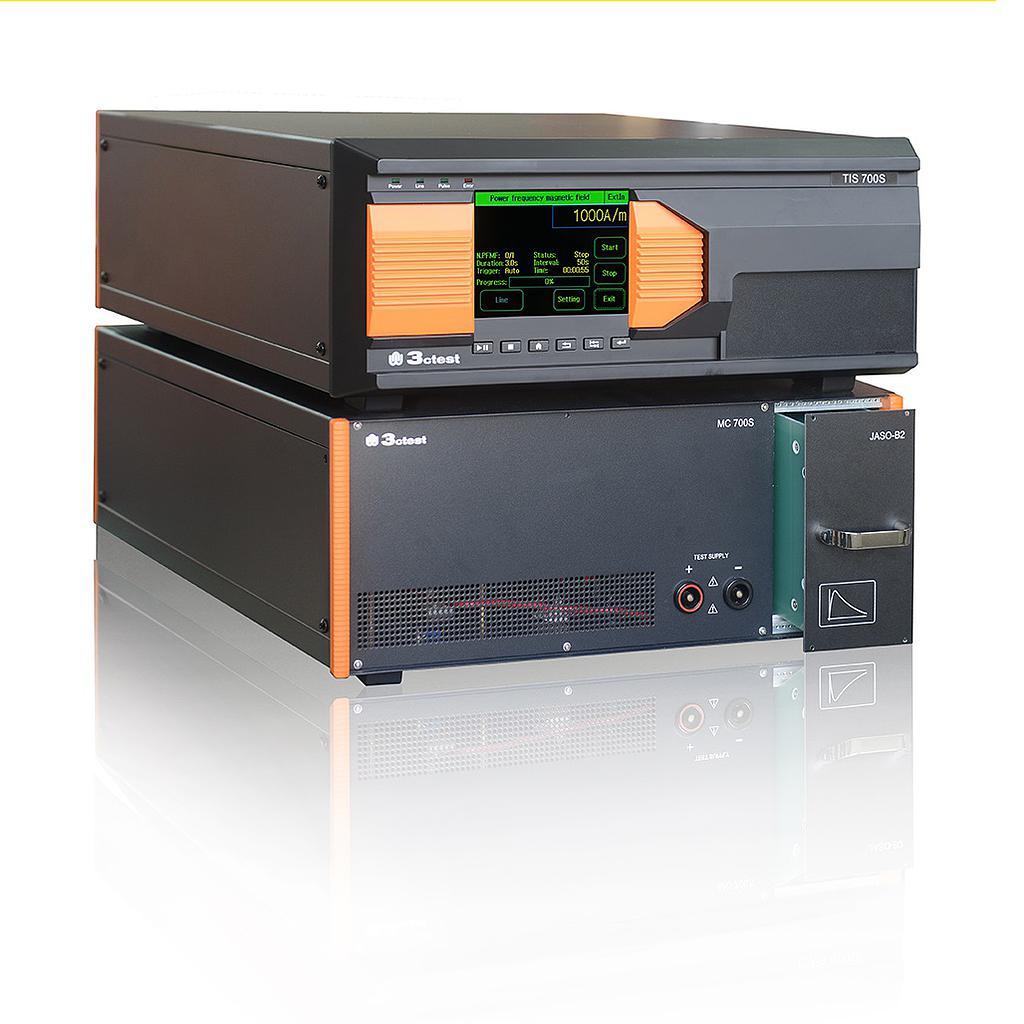

3ctest TIS 700S Automobile Micro - Pulse Generator (100~600V)

- As per NISSAN 28400 NDS03 B2:

Pulse Amplitude Vp: 200 - 400 V

Rise Time Tr（Vp): ≤1 μs

Step Interval: 3 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- NISSAN 28400 NDS07 C8:

Pulse Amplitude Vp: 200 - 400 V

Rise Time Tr（Vp): ≤1 μs

Step Interval: 3 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- NISSAN 28400 NDS07 C50:

Pulse Amplitude Vp: 200 - 400 V

Rise Time Tr（Vp):≤1 μs

Step Interval: 3 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- NISSAN 28400 NDS07 C300:

Pulse Amplitude Vp: 200 - 400 V

Rise Time Tr（Vp）: ≤1 μs

Step Interval: 3 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- SAEJ1455 Self - inductive Pulse:

Pulse Amplitude Vp: 200 - 600 V

Rise Time Tr（Vp): ≤1 μs

Time Constant: 1000 μs

Step Interval: 1 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- SAEJ1455 Mutual Induct:

Pulse Amplitude Vp: 200 - 600 V

Rise Time Tr（Vp): ≤1 μs

Time Constant: 15 μs

Step Interval: 1 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- JASO - D001 A2:

Pulse Amplitude Vp: 100 - 300 V

Rise Time Tr（Vp): ≤1 μs

Step Interval: 3 - 99 s

Polarity: +

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- JASO - D001 B2:

Pulse Amplitude Vp: 200 - 400 V

Rise Time Tr（Vp):≤1 μs

Step Interval: 3 - 99 s

Polarity: +/ -

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- JASO - D001 D2:

Pulse Amplitude Vp: 100 - 300 V

Rise Time Tr（Vp):≤1 μs

Step Interval: 3 - 99 s

Polarity: +

No. of Burst: 1 - 9999

Weight: 1 kg

Dimension: 95 x 170 x 180 mm

- General Parameters:

Power Supply: AC 110/220 V, 10%, 45 - 65 Hz

Environmental Temperature: 15 - 35℃

Relative Temperature: 35% - 85%RH (condensation free)

Dimension: 450 x600 x177 mm (4U cabinet x 2)

Weight: About 20 kg
