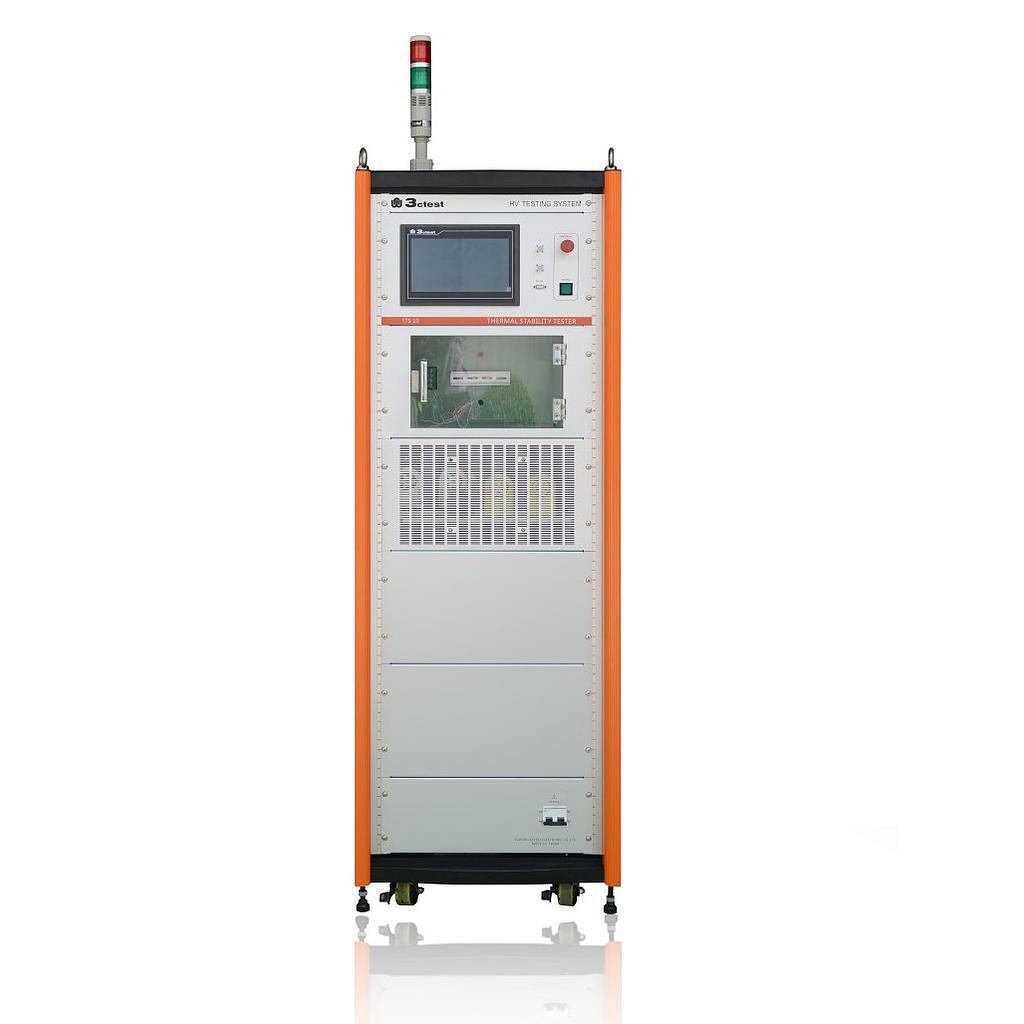

3ctest TTS 20 Thermal Stability Tester (5A,10A,20A; 2mA)

- Technical parameters:

Max.current: 5A,10A,20A

Min.current: 2mA

Test grade: 4-grade

Current measurement resolution: Better than 3%

Test voltage: 0～1500V

Voltage measurement resolution: Better than 3%

Temperature measurement: 0～200℃

Temperature measurement resolution: Better than ±3℃

Temperature measurement path: 4-path

Temperature measurement mode: Thermoelectric couple, surface test

Test box: Internal, with SPD installation rail

Voltage regulating mode: Power-driven

Continuous current: Programmable control, automatic compensation

Measurement system: PC control, current, voltage and temperature curve drawing

- General data:

Power supply: AC220V ± 10%, 50/60Hz

Temperature: -10～+40℃

Humidity: 35%～85%RH（no condensation）

Ground resistance: No more than 0.5Ω

Dimension: 600×800×1720

Weight: Approx. 200kg

No conductive dust, fire and explosion danger, no corroding metal and insulated gas. Voltage waveform is sine wave. THD is <5%.
