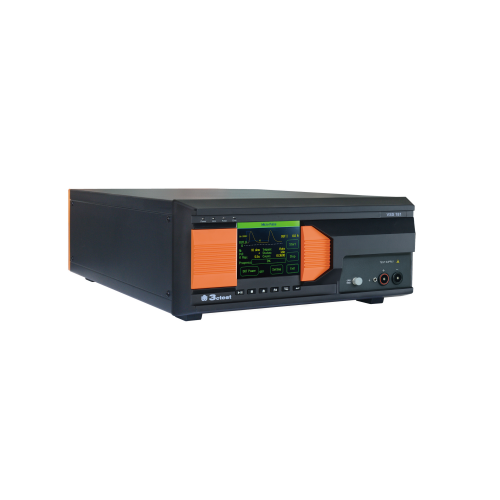

3ctest VSS 181 Spike voltage simulator (30~600V ±5%)

- General data:

Display screen: 5.7 inch TFT touch screen

Power supply: AC 110V±10%、220V±10%,50/60Hz (default AC 220V 50Hz)

Fuse: 6A

Max. Power consumption: 300W

Size: 19” / 4U

Weight: Approx. 30Kg

Temperature: 15–35℃

Humidity: 45%–75%

Air pressure: 86kPa–106kPa

- Main parameters:

Test voltage: 30~600V ±5%

Rise time: ≤5us

Voltage duration: 10-50us

Source impedance: 10 ohm ,30 ohm ,50 ohm

Polarity: +/-/alternative

Pulse interval time: LCD display the test values

Voltage, current measurement: 1–9999

Trigger mode: Automatic, manual and external

Protection current: 1 ~ 20A to be set arbitrarily
