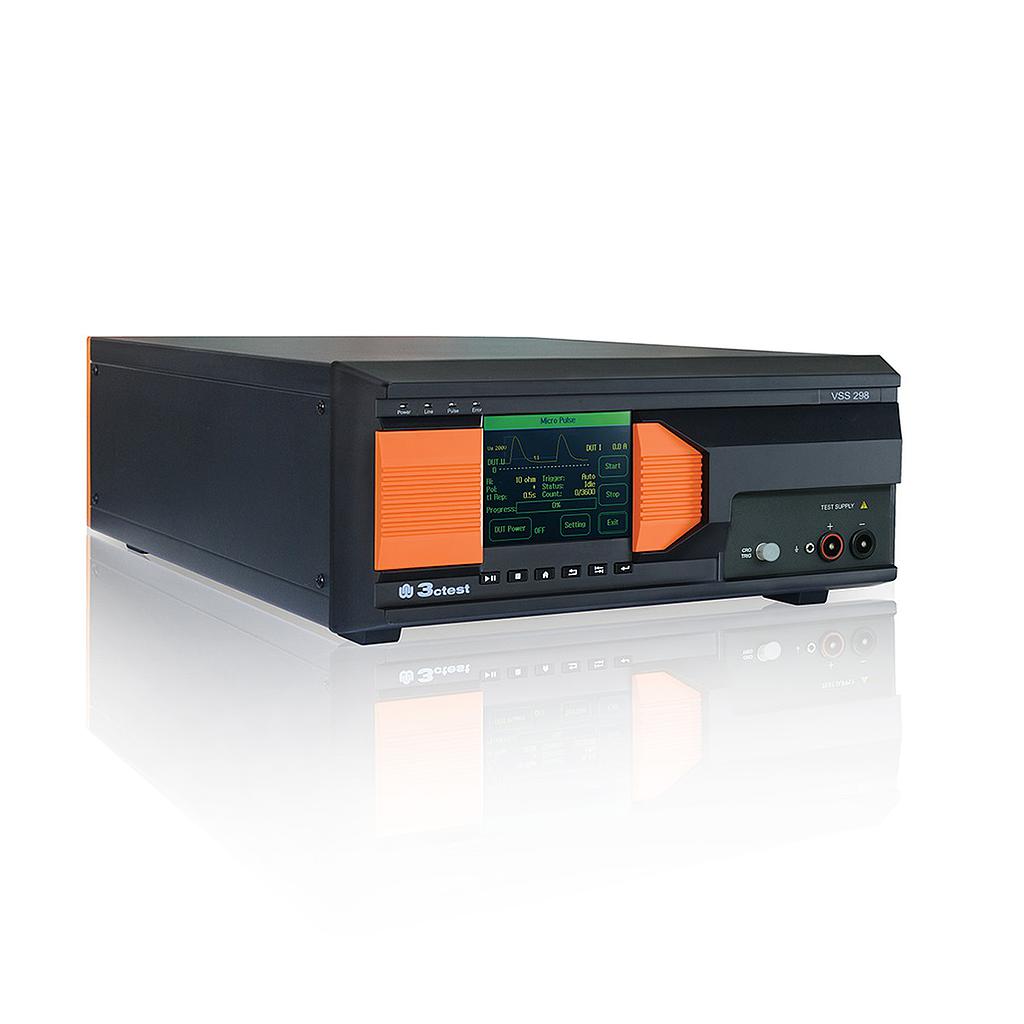

3ctest VSS 298 Spike Voltage Simulator (50V~300V)

- Technical Parameters:

Pulse Voltage: 50 V~300 V

Pulse Polarity: positive, negative, positive first then negative, negative first and then positive.

Rise time: <50 ns

Pulse Interval: 5 ms~1000 ms

No. of Pulses: 1~9999

Pulse Oscillatory Frequency: 100 kHz ~ 500 kHz

EUT Power Supply: DC 60 V, 30 A/50 A

- General Parameters:

Display Screen: 5.7” TFT touch screen

Working Power: AC 110 V/220 V (±10%), 50 Hz/ 60 Hz (AC 220 V 50 Hz in mainland China)

Fuse: 6 A

Dimension: 19”/4U

Weight: Approx. 18.5 kg

Ambient Temperature: 15 ℃ ~ 35℃

Relative Humidity: 45%–75%

Atmospheric Pressure: 86 kPa–106 kPa

Datasheet
