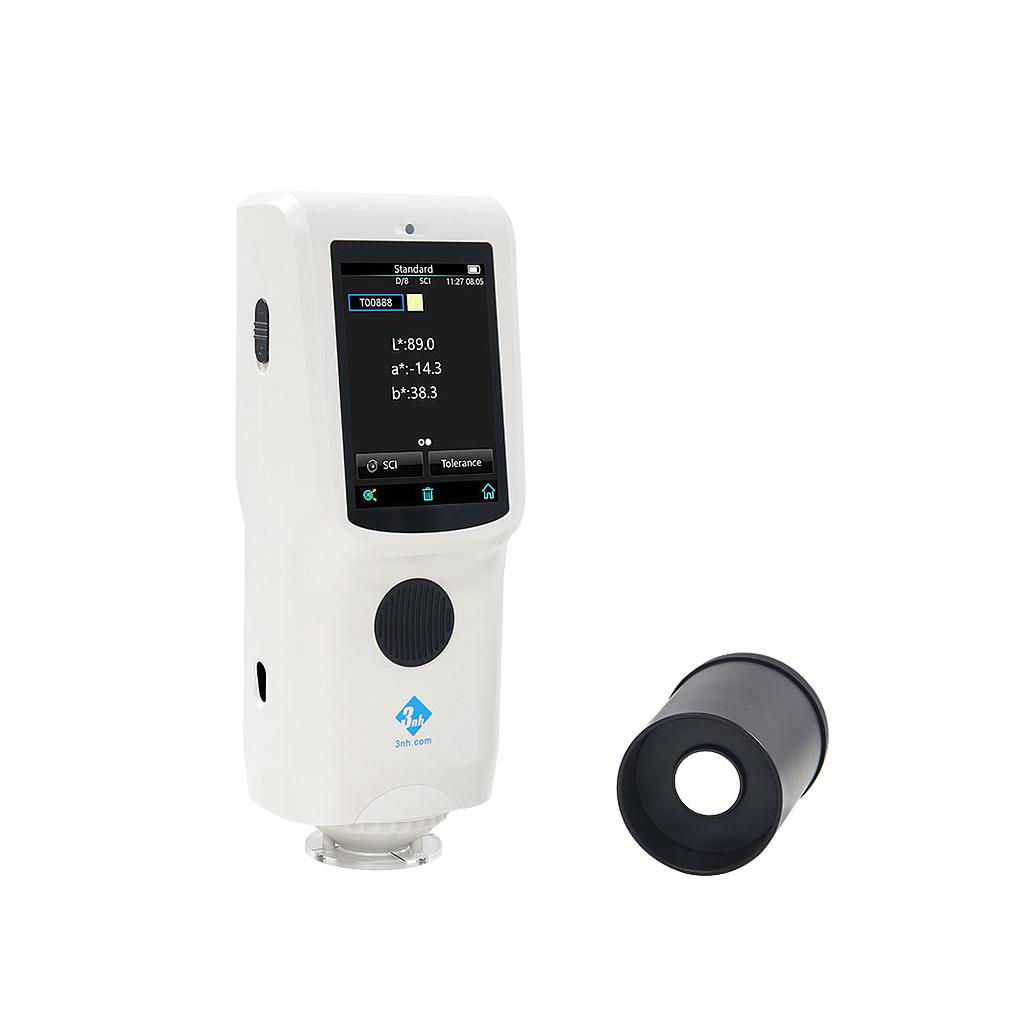

3nh CR7 Spectrocolorreader (Basic Edition)

Integrating sphere size: Φ40mm

Light source: Combined full-spectrum LED light source

Spectroscopic method: Planar grating

Sensor: Silicon photodiode arrays (dual row 24 groups)

Wavelength range: 400~700nm

Measurement range: L:0~100

Reflectivity: can test the reflectance at a specific wavelength specified by the user (default 550nm)

Measurement aperture: Single aperture: Φ8mm

Focusing method: Fixed Focus

Color space: CIE LAB,XYZ,Yxy,LCh

Observer angle: 10°

Illuminant: D65,A,F2(CWF)

Display Accuracy: 0.1

Measurement time: Approx. 1.5s

Size: LxWxH=81X71X214mm

Weight: About 460g

Battery power: Lithium battery, 6000 times in 8 hours

Illuminant life span: 5 years, more than 3 million times measurements

Display: TFT true color 3.5inch, capacitive touch screen

Data port: USB is for charging only, does not support quality control software

Data storage: 500 standard samples, 1,0000 samples

Language: Simplified Chinese, English, Traditional Chinese

Operating temperature range: 0~40℃, 0~85%RH (no condensation), altitude< 2000m

Storage temperature range: -20~50℃, 0~85%RH (no condensation)

Standard Accessories: Power adapter, data cable, manual, black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm platform aperture

Optional Accessories: USB micro printer, powder test box,holder base
