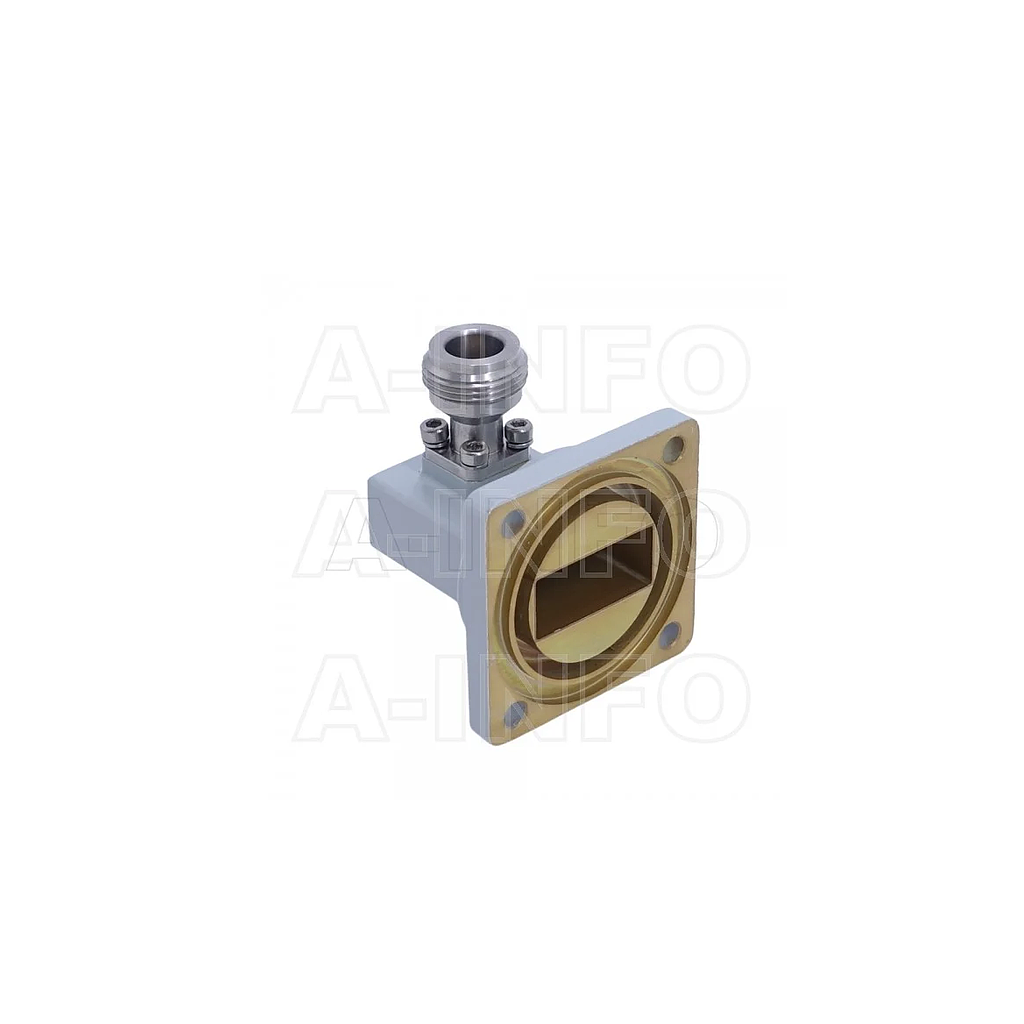

A-INFO 90WCAN_BE Right Angle Rectangular Waveguide to Coaxial Adapter (8.2-12.4GHz WR90 ~ N Type Female)

Adapter Type: Right Angle

Adapter Grade: Standard

Adapter Power Grade: Standard

Waveguide Band: X, Ku

Waveguide Type: Rectangular

Waveguide Size EIA WR: WR90

Frequency, Min (GHz): 8.2

Frequency, Max (GHz): 12.4

I.L., Typ (dB): 0.18

I.L., Max (dB): 0.21

VSWR, Typ: 1.20:1

VSWR, Max: 1.25:1

Impedance, (Ohm): 50

Flange Style: Square

Flange Type: Choked

Flange Designation: FBE100(CBR100)

Connector: N Type

Connector Gender: Female

Power Handling, CW, (W): 150

Power Handling, Peak, (KW): 3

Operating Temp. Low (°C): -55

Operating Temp. High (°C): 85

Storage Temp. Low (°C): -60

Storage Temp. High (°C): 90

Body Material: Al

Finish: Chemical Conversion Coating, Gray Paint

Size, L (mm): 38

Size, W (mm): 41.4

Size, H (mm): 49.8

Weight, (kg): 0.06

Datasheet
