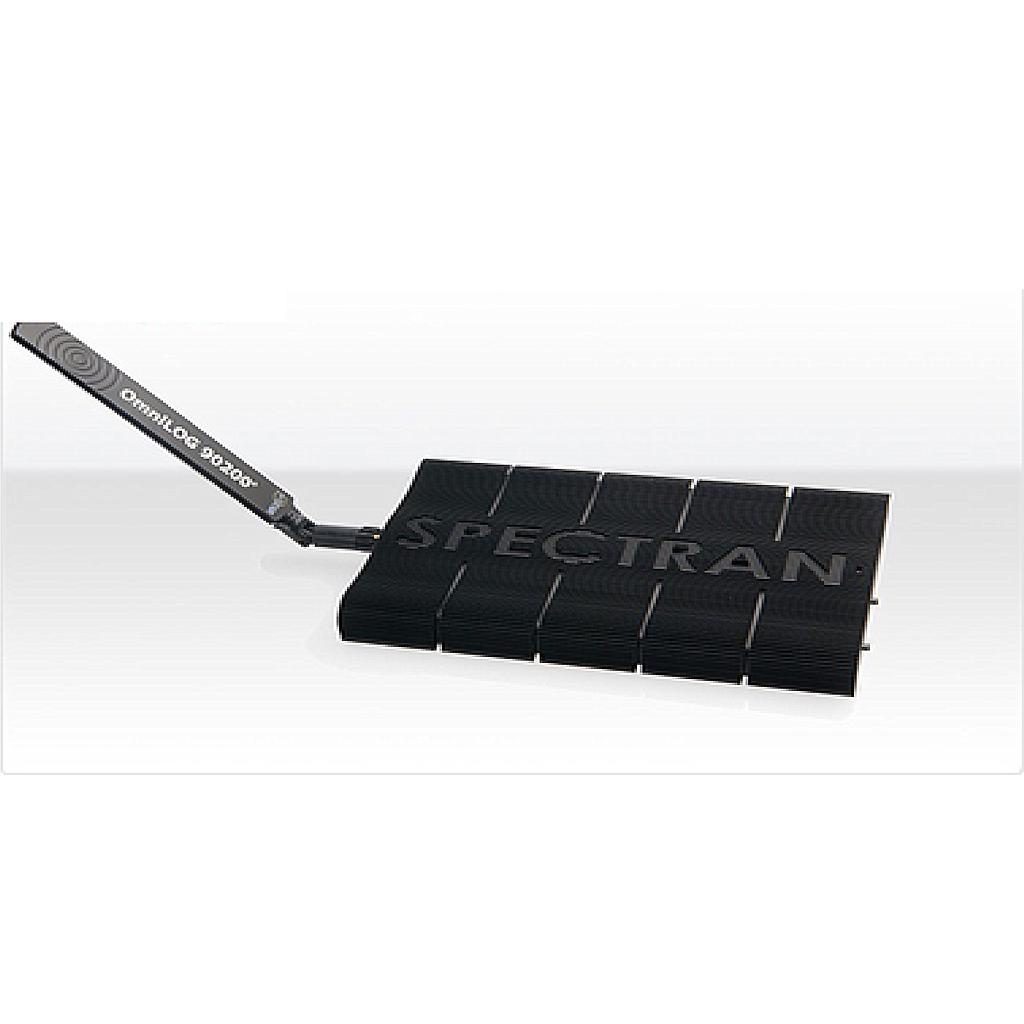

Aaronia Spectran HF-6060 V4X Remote Controlled USB Spectrum Analyzer

ManufacturerAARONIA(View more products from this manufacturer)

ModelHF-6060V4X

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency range: 10MHz to 6GHz
DANL: -135dBm(1Hz)
DANL with Preamp: -150dBm(1Hz)
Max. power at RF input: +10dBm
Lowest sample time: 10mS
Resolution (RBW): 3kHz to 50MHz
Units: dBm, dBµV, V/m, A/m, W/m²
dBµV/m, W/cm² etc.
Detectors: RMS, Min/Max
Demodulator: AM, FM
Input: 50 Ohm SMA RF-input (f)
Accuracy: +/- 2dB (typ.)
Interface: USB 2.0/1.1
Dimensions (L/W/D): 210x136x26 mm
Weight: 1600gr
Warranty: 10 years

Highlights:

Exposure limit calculation and display according to DIN/VDE 0848
Up to 100x faster sample time as V3 units
Up to 60dB higher sensitivity as V3 units
Low noise preamplifier (option)
14Bit Dual-ADC
DDC Hardware-Filter
150 MIPS DSP (CPU)
Real-time remote control via USB
Vector (I/Q) measurement
Real-time Peak Power Detector (option)
Internal speaker (which can be switched off)
Audio out for the use of PC based FFT analyzer software
Included OmniLOG antenna
Very thick (3mm) aluminium housing offering very good screening.
100% powered by the external power supply only (no battery)
Free MAC OS, Linux and Windows software

Application examples

Included in delivery

Options

Accessories

Downloads
