Design: Logarithmic-periodic
Frequency range: 700MHz-4GHz
Max. transmission power: 100 W CW
(400MHz)
Nominal impedance: 50 Ohm
VSWR (typ.): <1:2
Gain (typ.): 4dBi
Antenna factor: 23-38dB/m
Calibration points: 333 (10MHz steps)
RF connection: SMA socket (18GHz) or N
socket using an adapter
Dimensions (L/W/D): (340x200x25) mm
Weight: 270gr

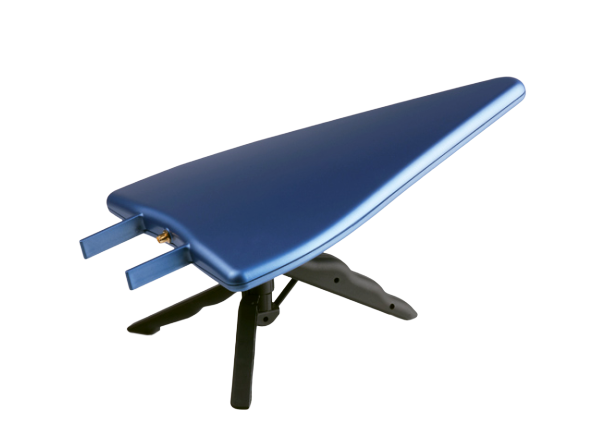

Included with delivery: HyperLOG 7040 antenna, typical calibration data with up to 533 calibration points (10MHz steps!), aluminum design carrycase, detachable handle with "miniature tripod" mode, Aaronia SMA toolset with over-torque protection
Option:
- Large Aluminum Tripod: 281
- SMA to N Adapter: 770
- Aaronia SMA-Cable 0,3m
- SMA Cable 1m with mounting wrench
- SMA Cable 5m with mounting wrench
- SMA Cable 10m with mounting wrench
- Heavy Plastic Carrycase
- Heavy Pistol Grip with polarization-change-function
