Frequency Range (min): 9kHz (optional 1Hz)
Frequency Rance (max): 20GHz
Real-Time Bandwidth: 88MHz (opt. 160/175MHz)
Minimum Event Duration for 100% POI : <1µS
Max. Power at RF input (50 Ohm) +20dBm (+33dBm*)
Displayed Average Noise Level (internal pre-amp on) typ. -150dBm/Hz
Amplitude accuracy (typ.) typ. +/- 1,5dB
RF input 50 Ohm (SMA-connector)
RBW (resolution bandwidth) 1Hz to 3MHz
VBW (video bandwidth) 1Hz to 3MHz
Demodulator AM, FM
Measurement Units dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm²
Detector Min, Max, AVG, Peak (QPeak in preparation)
Attenuator range 45dB (0,5dB steps, incl. pre-amp)
Traces ACT, AVG, MAX, MIN
Video RAM 64 MB
SDRAM 256 MB
CPU Intel Haswell i7-4600M
RAM 8 GB
HDD 500GB, 7200RPM (optional SSD up to 8TB)
Operation System Windows 7

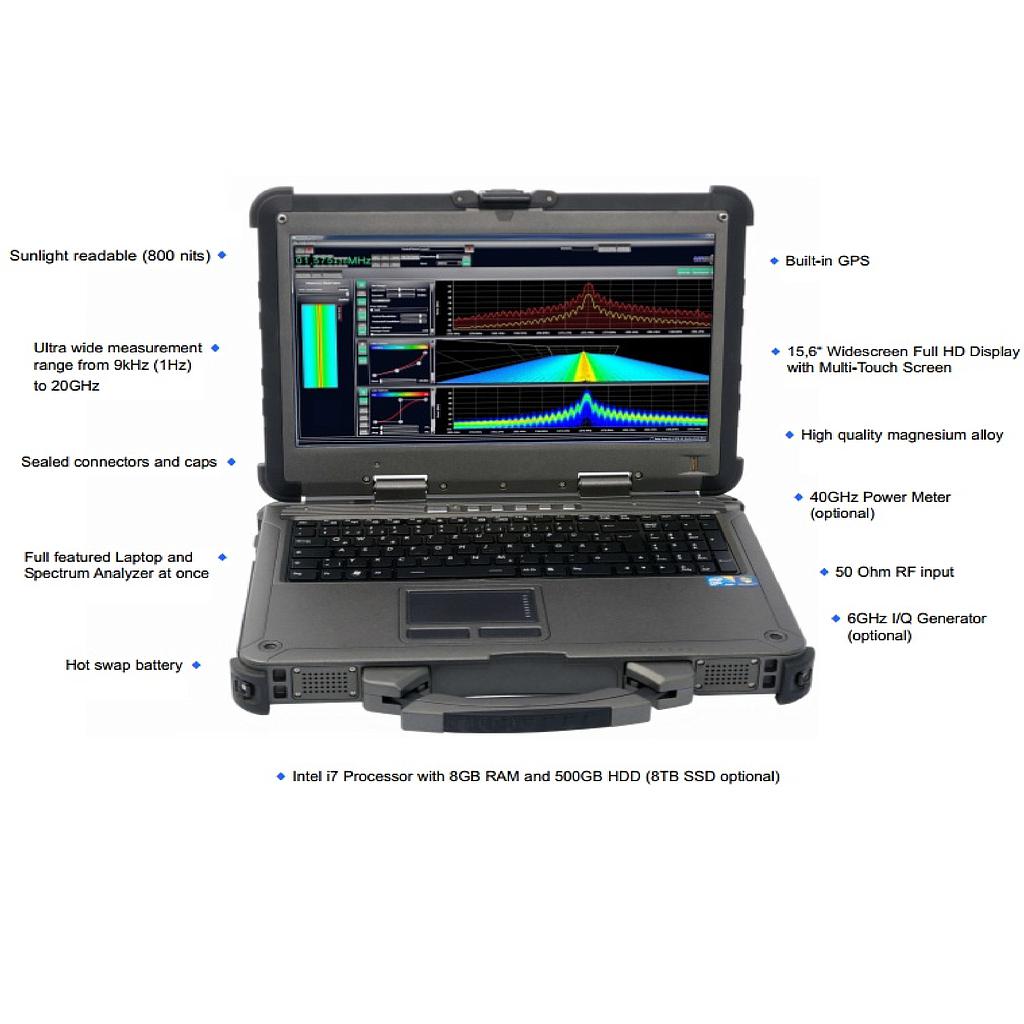

Display 15,6“ Full-HD 1080p with Multi-touch screen, sunlight readable (800 Nits Quadra-Clear)
Graphic Card nVidia Geforce GT 745M DDR3
Dimensions 410 x 315 x 120mm
Weight 7.5kg
Power Supply AC Input: AC Input: 100-240V, 50-60Hz DC Output: 19V, 4,74A max
