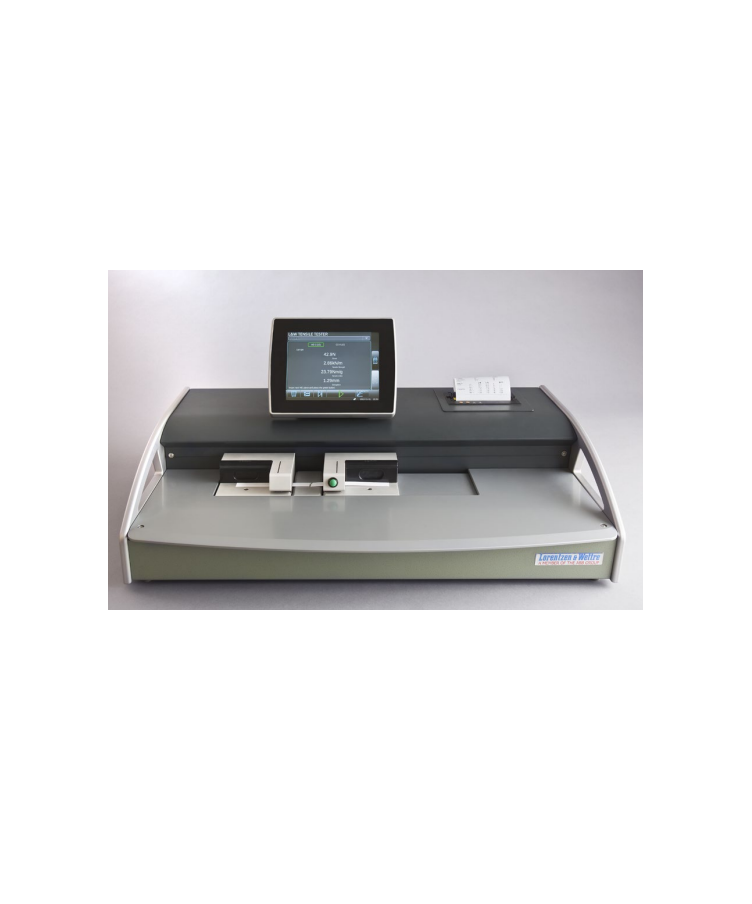

ABB 066 Tensile Tester

Inclusive: Built-in thermo printer

Measurement

Load cells:

50N (11 lbf)

200N (45 lbf)

1000N (225 lbf)

Stretch at break:

370% max at 50 mm (2 in)

135% max at 100 mm (4 in)

30% max at 180 mm (7.1 in)

Instrument

Testing velocity: 3–100 mm/min (0.12–4 in/min)

Test span: 50 mm, 100 mm and 180 mm (2 in, 4 in and 7.1 in)

Clamping force: 3000 N (675 lbf)

Test piece width: 15, 25 or 50 mm (0.6, 1.0 or 2.0 in) without the need for changing clamps

Results

Measurement values (in SI or FPS units):

- tensile strength

- max. force

- breaking length

- strain at break

- elongation

- elongation at 2/3 of max. force

- tensile energy absorption

- tensile stiffness

- E-modulus (Young’s modulus)

Statistics:

- indexed results

- arithmetic mean value

- median value

- standard deviation

- coefficient of variation

- MD/CD ratio

Connections

Data: Ethernet

The instrument acts as a FTP-server.

Test results can be retrieved by a FTP-client.

Installation requirements

Power: 90 W

Instrument air: 0.6–1 MPa (75–150 psi)

Option:

- available load cells 50N (11 lbf), 200N (45 lbf) or 1000N (225 lbf)

- wetting device

- integrated notch punch and ISO fracture toughness evaluation

Dimensions: 0.8 × 0.6 × 0.4 m/32 × 24 × 16 in

Volume: 0.3 m³/11 ft³
