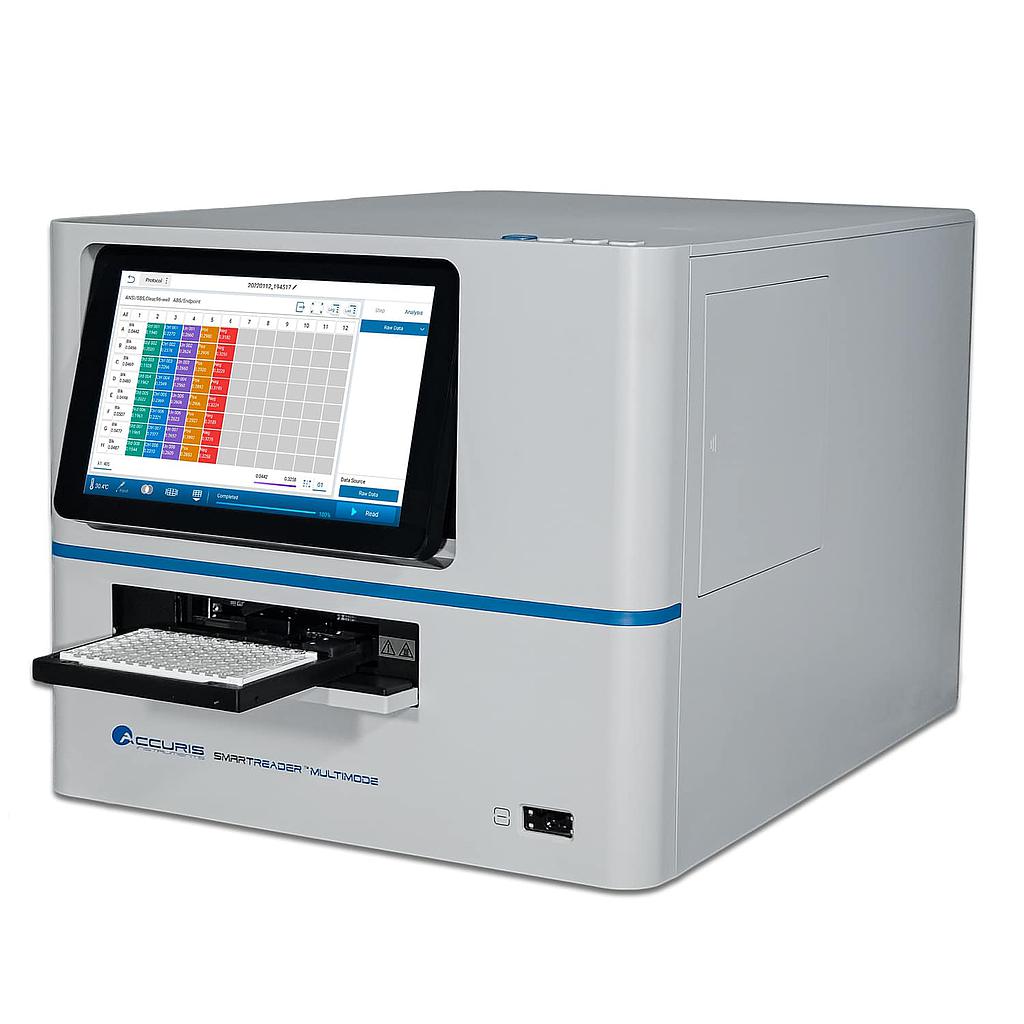

Accuris MR9620 SmartReader Multimode

General Specifications :

Measurement Technologies : Absorbance, Fluorescence, Luminescence

Plate Formats 6- to 384-well plates

Shaking : Linear (4.7 Hz, 7.0 Hz, 13.5 Hz), orbital, and double orbital (240 - 1200 rpm)

Incubation Range : RT +4 °C to 45 °C

Temperature Uniformity : ± 0.5 °C @ 37 °C

Display : 10.0 inch touchscreen

Communication Ports : 2 USB A type ports / 1 USB B type port, 1 Ethernet port, RS232 interface

Dimensions (WxDxH) : 42.0 x 55.0 x 38.6 cm

(16.5 x 21.7 x 15.2 in.)

Power Input : AC 100 to 240 V, 50 to 60 Hz

Weight : 33 kg / 72.8 lbs

Absorbance :

Light Source : High Energy Xenon Flash Lamp

Detector : Photodiode

Wavelength Accuracy : 2 nm

Wavelength Repeatibility : 0.2 nm

Bandwidth (FWHM) : > 2.5 nm

Wavelength Range : 200 - 1000 nm, 1nm steps

Absorbance Range : 0.0 - 4.0 OD

Resolution : 0.0001 OD

Accuracy : 96-precision mode:

± (1.0 %+0.003Abs) @ (0.0-2.0Abs]

± 2.0 % @ (2.0-3.0Abs]

Repeatibility :

- CV < 1.0 % or SD< 0.003 Fast (0.0-3.0Abs]

- CV < 0.5 % or SD< 0.003 Accurate (0.0-3.0Abs]

Stray Light : 0.1 % @ 220 nm

Linearity : R2 > 0.999 @ [0.0-3.0Abs]

Measurement Speed : < 15 seconds

Fluorescence :

Reading Mode : Top Reading

Excitation Light Source : High Energy Xenon Flash Lamp

Detector : Photo Multiplier Tube (PMT)

Detection Limit : ≤ 1 pM

Wavelength Range : EX: 200 - 1000 nm; EM: 270 - 850 nm

Included Filter Cartridges : (EX / EM): 470 / 525nm; 523 / 564nm; 624 / 692nm

Linear Dynamic Range : 6 logs

Luminescence :

Detector : Photo Multiplier Tube (PMT)

Detection Limit : 15 amol / well

Linear Dynamic Range : 6 logs

Crosstalk : ≤ 0.005%

DATASHEET
